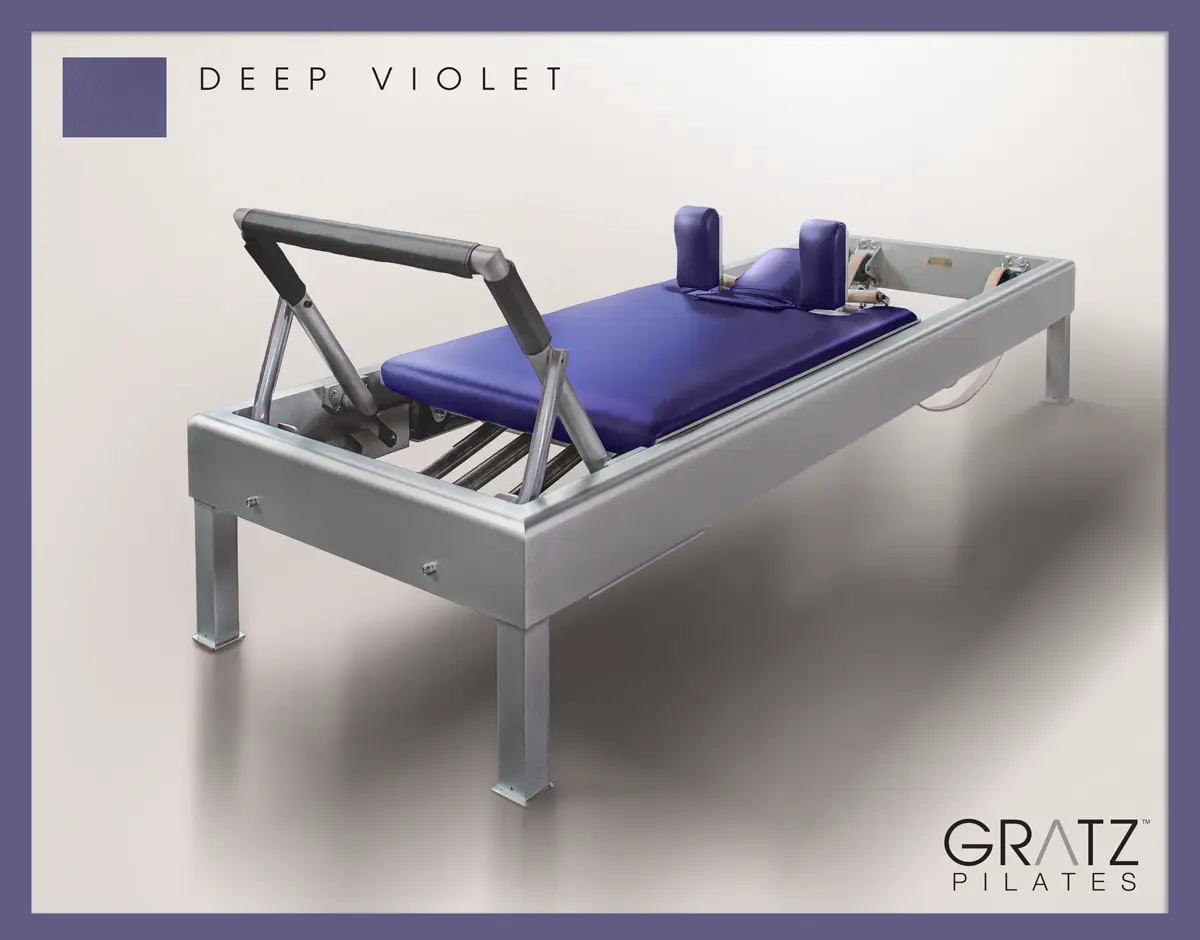

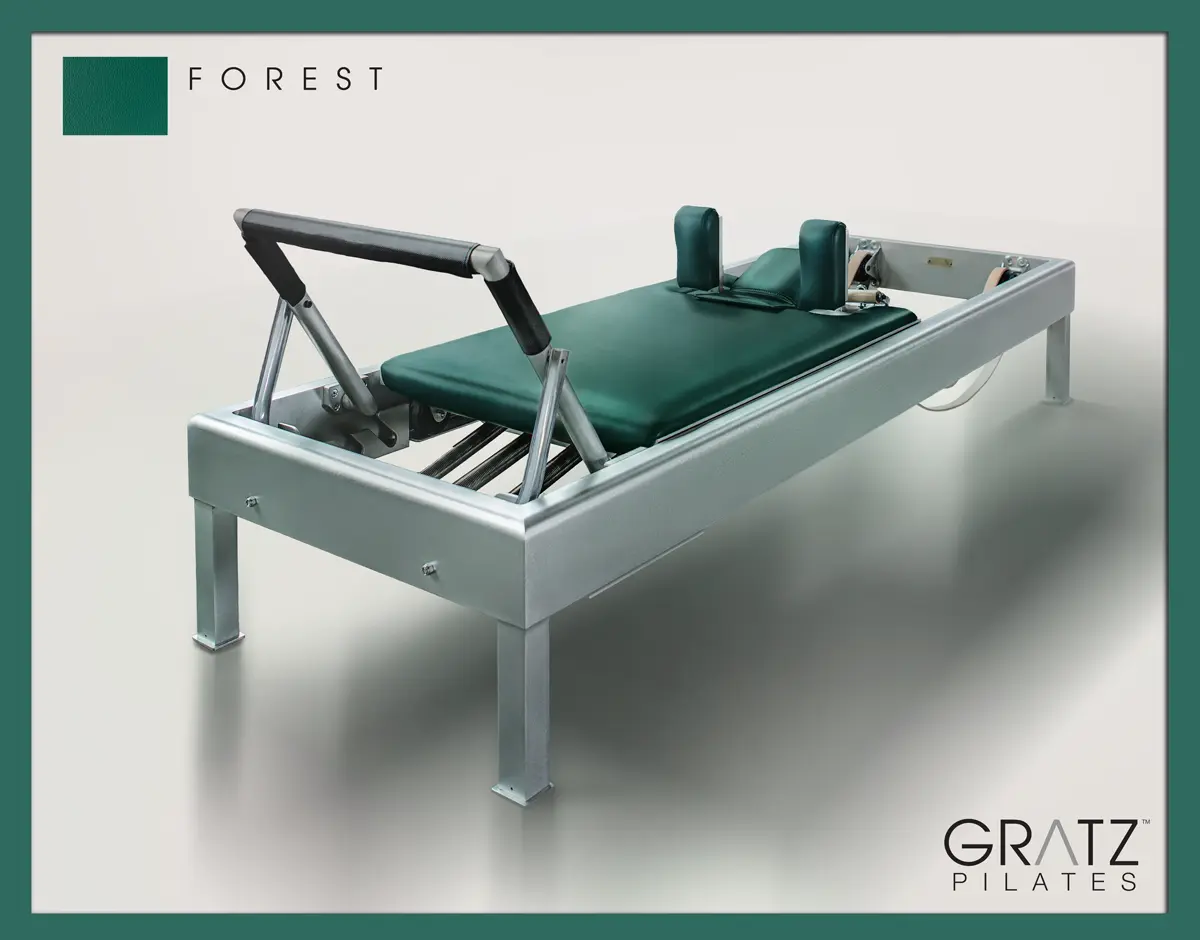

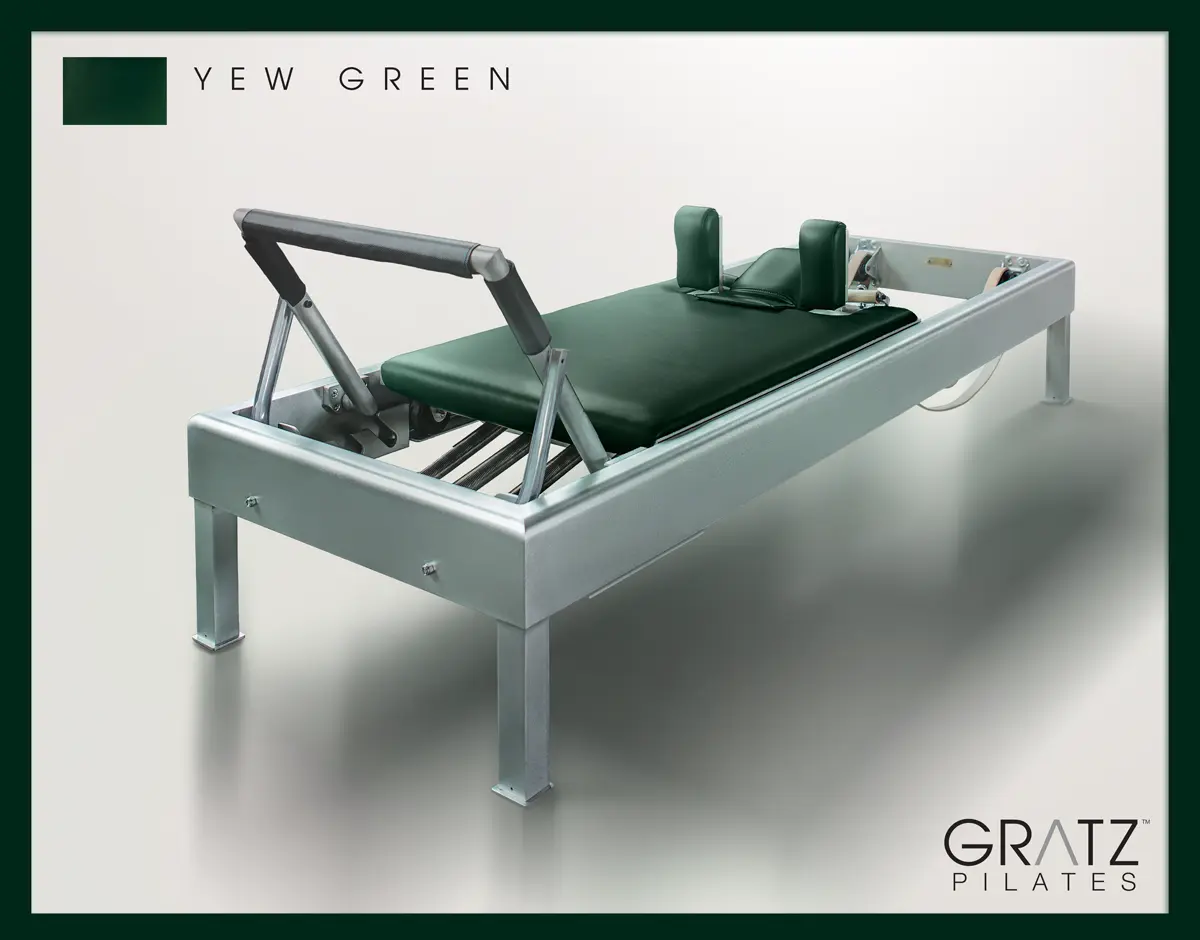

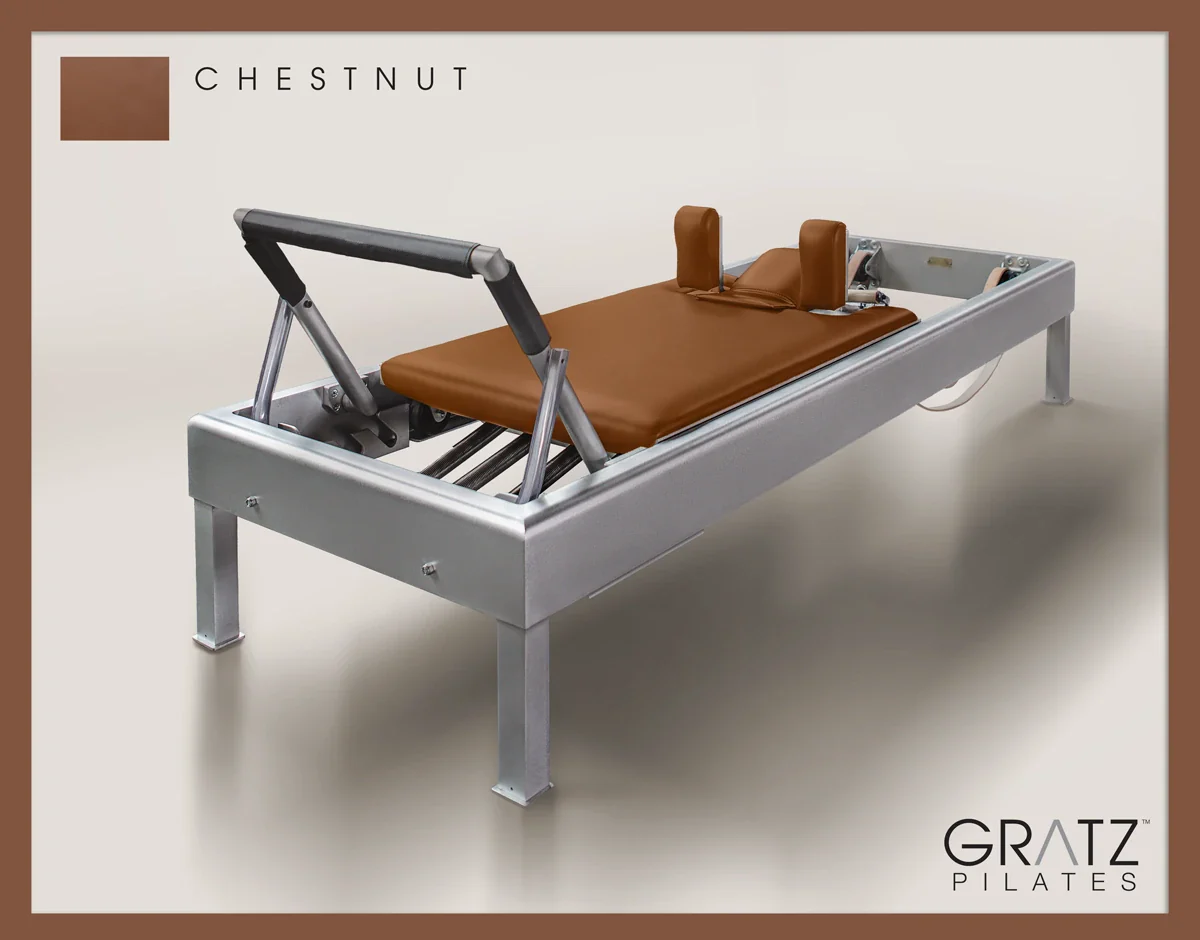

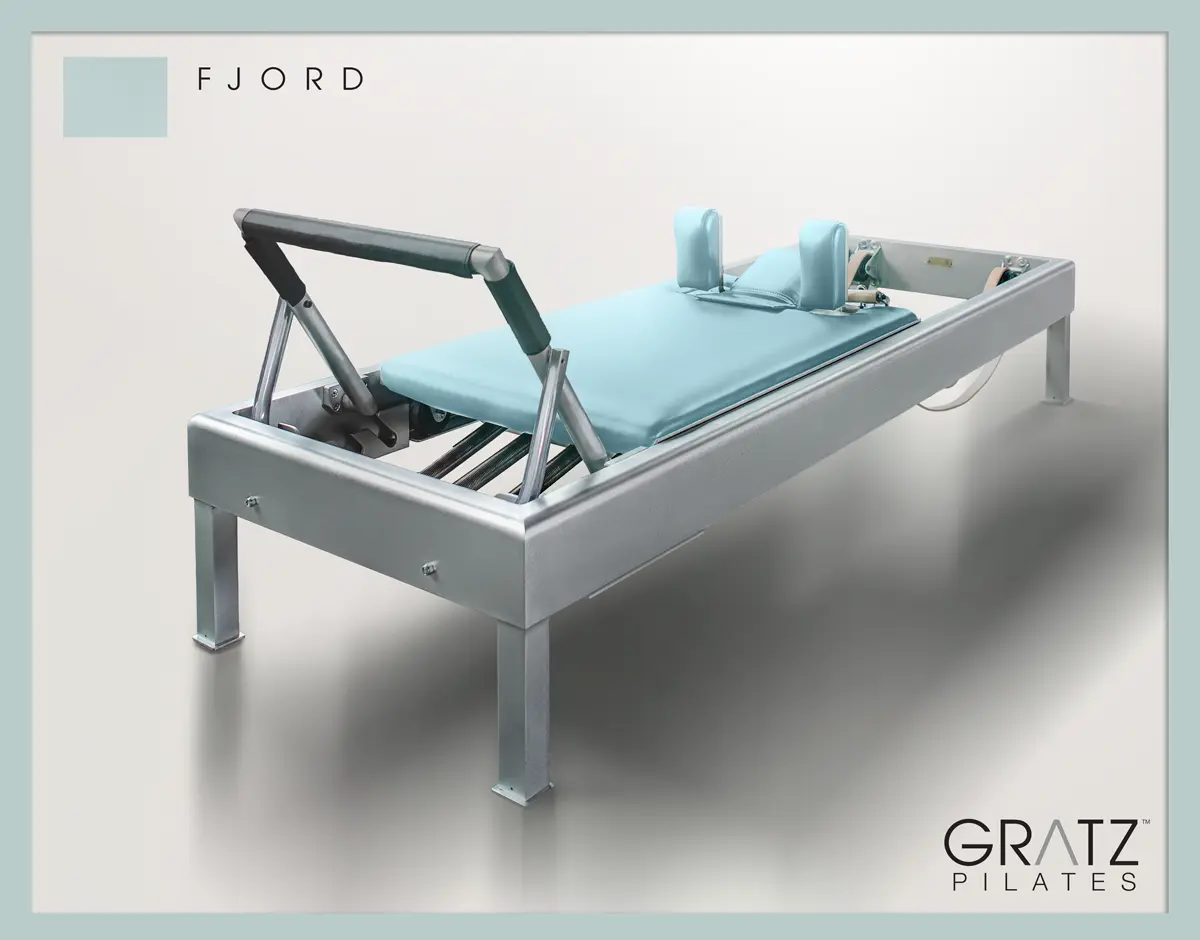

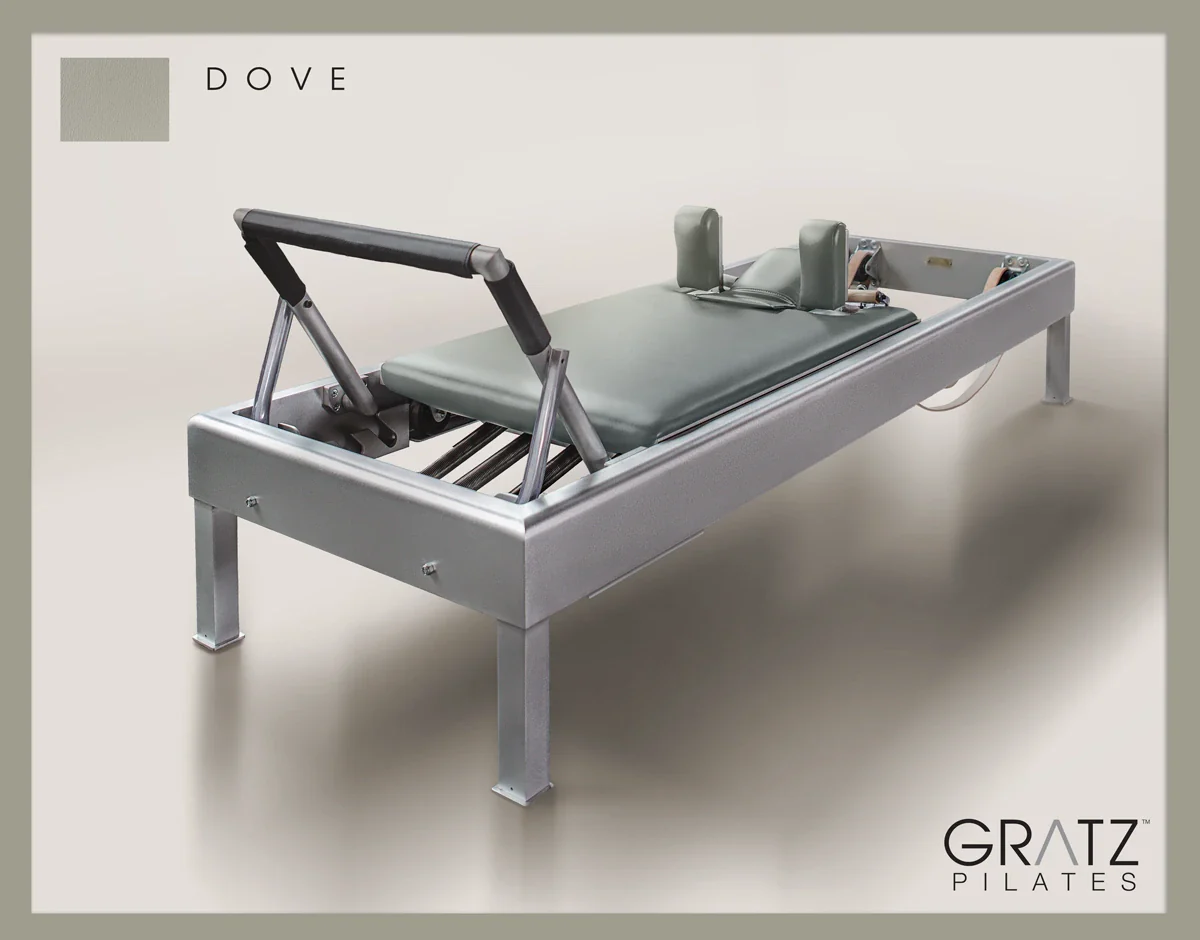

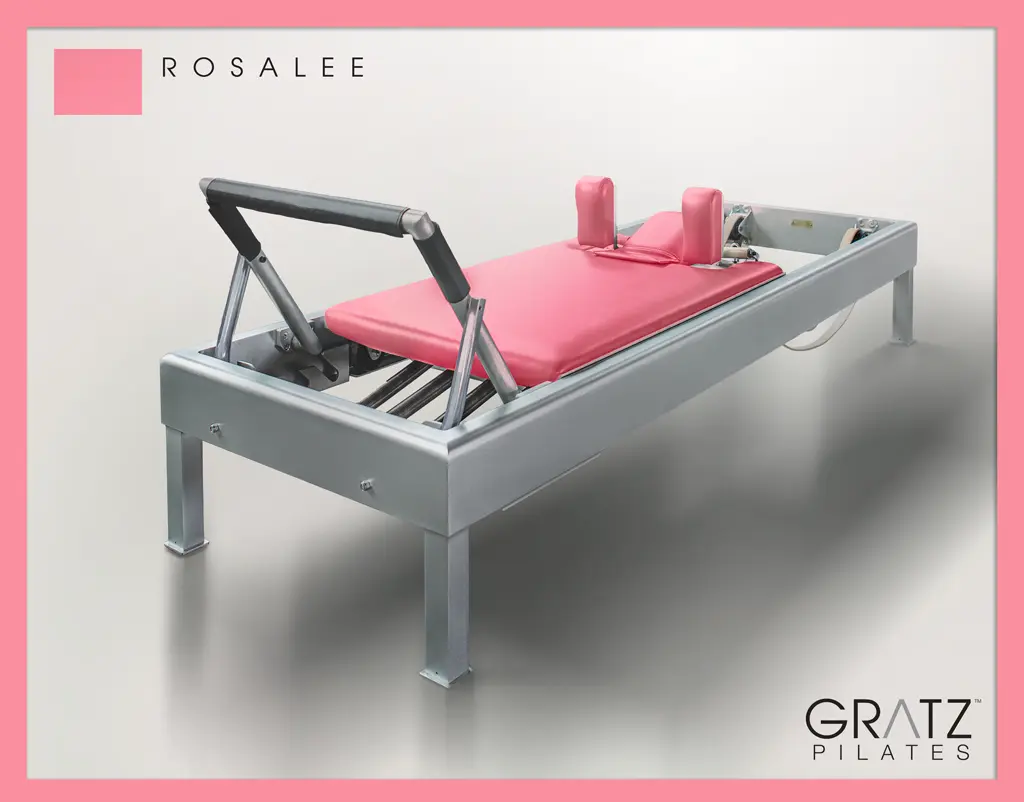

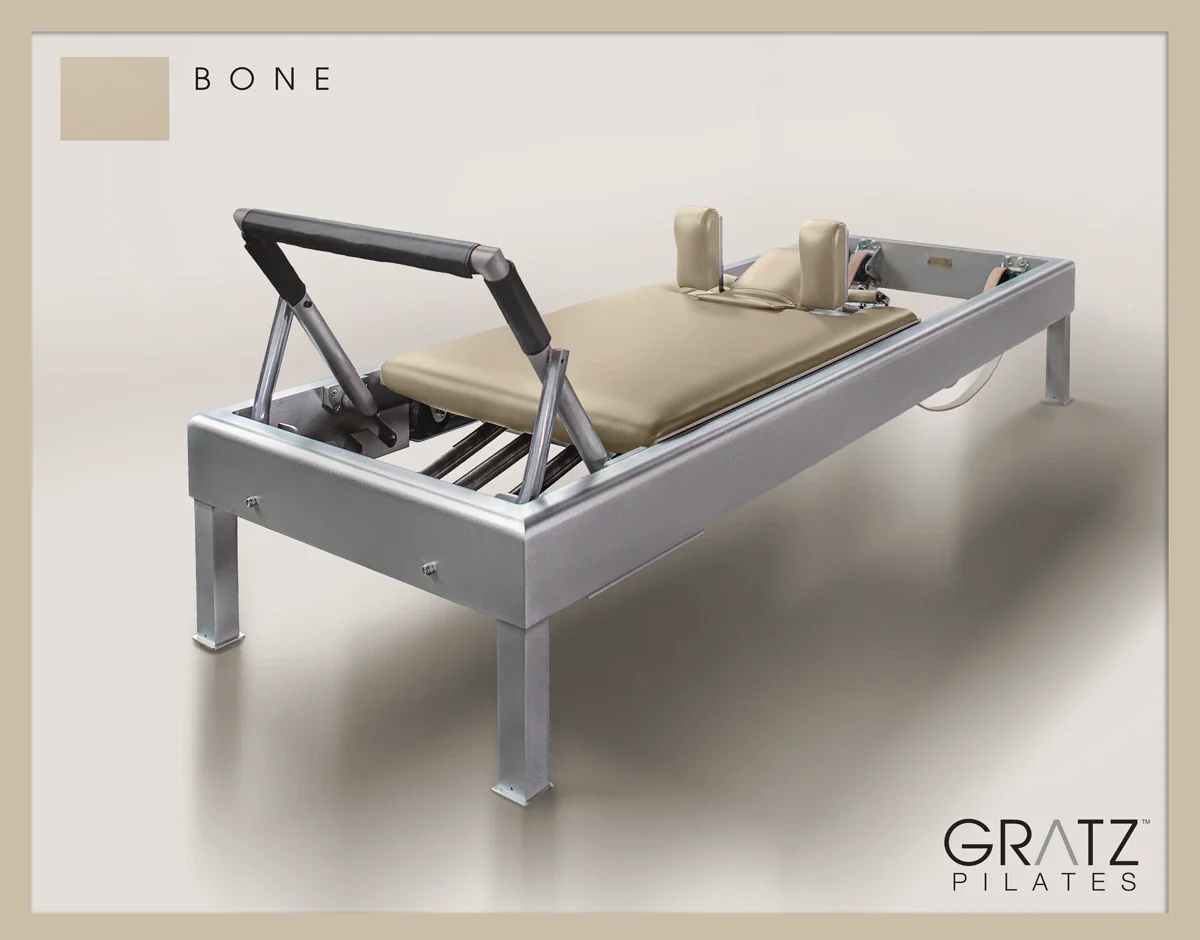

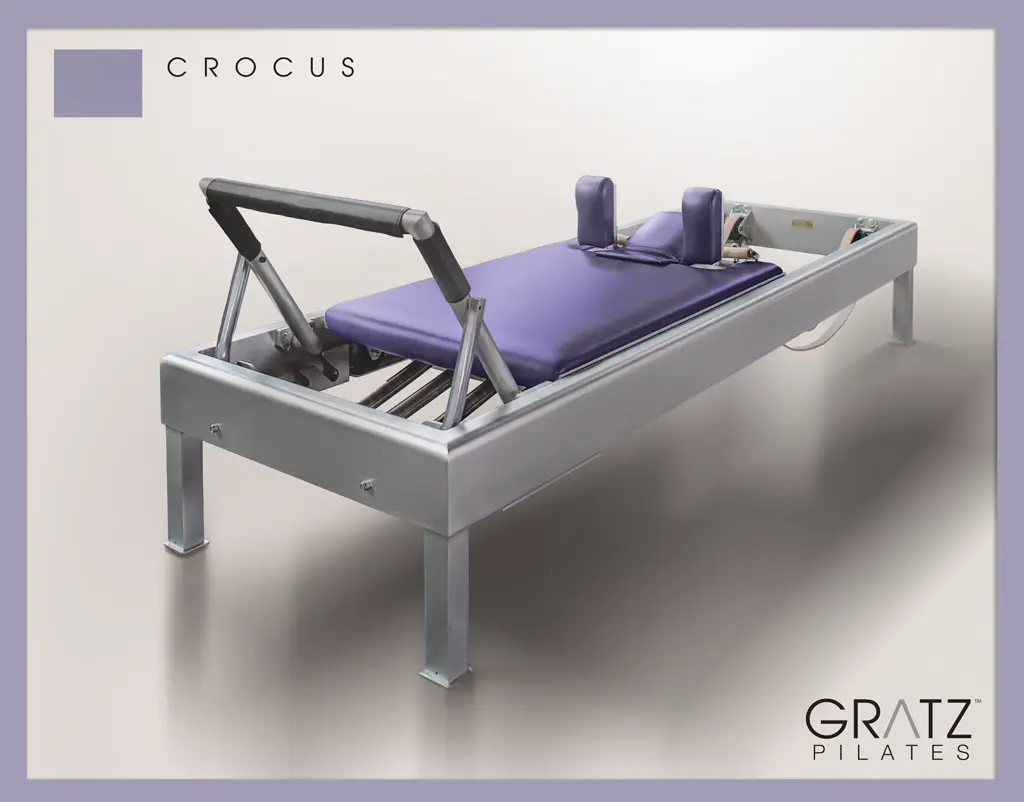

Pilates Archive Reformer

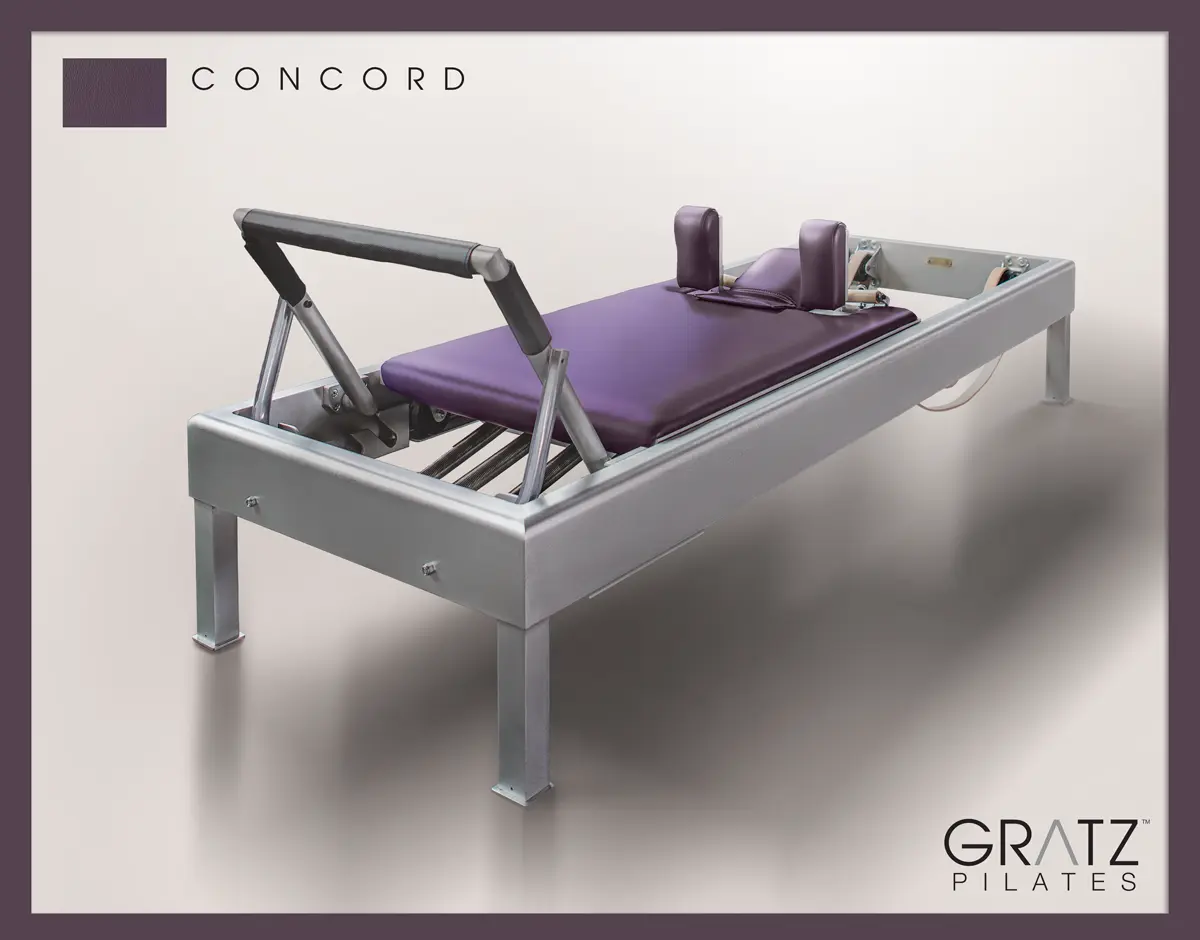

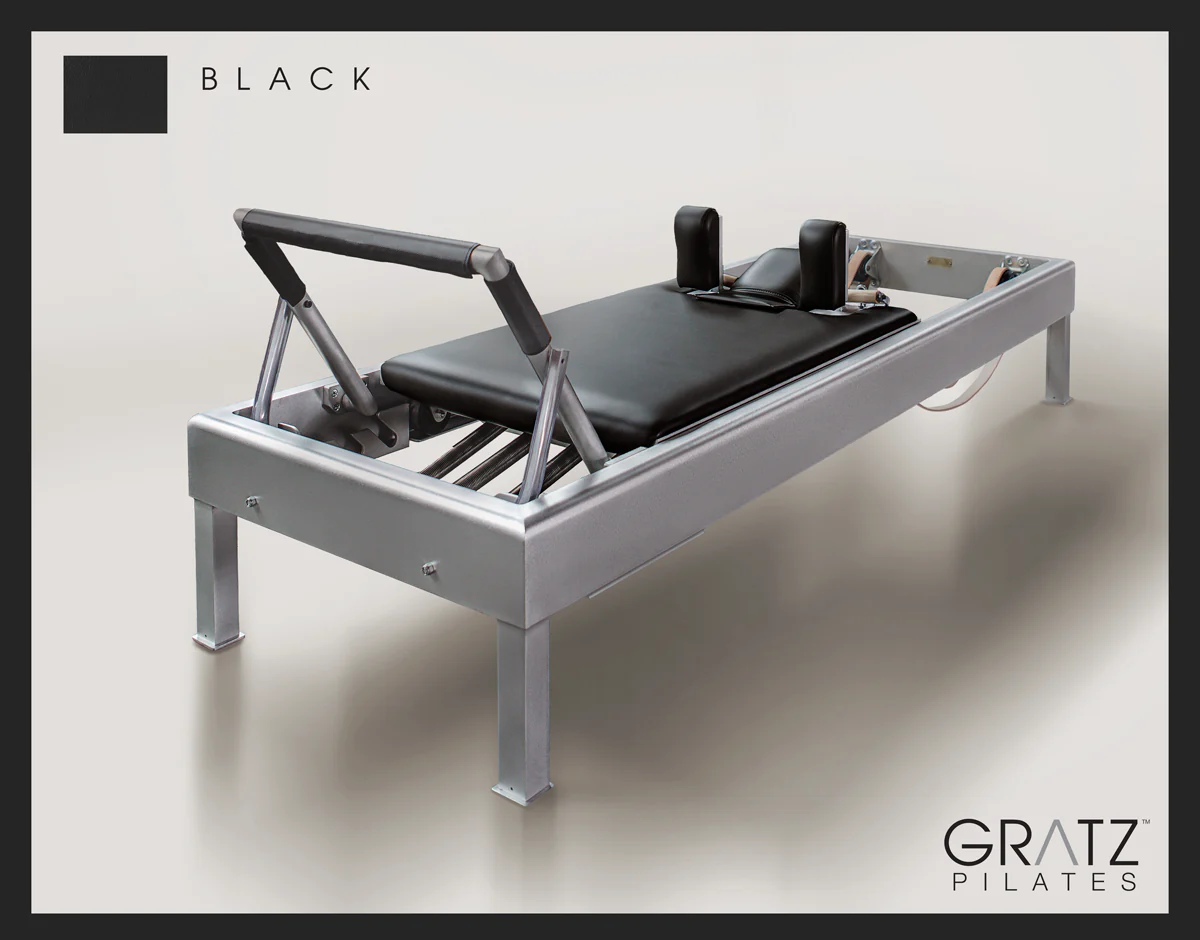

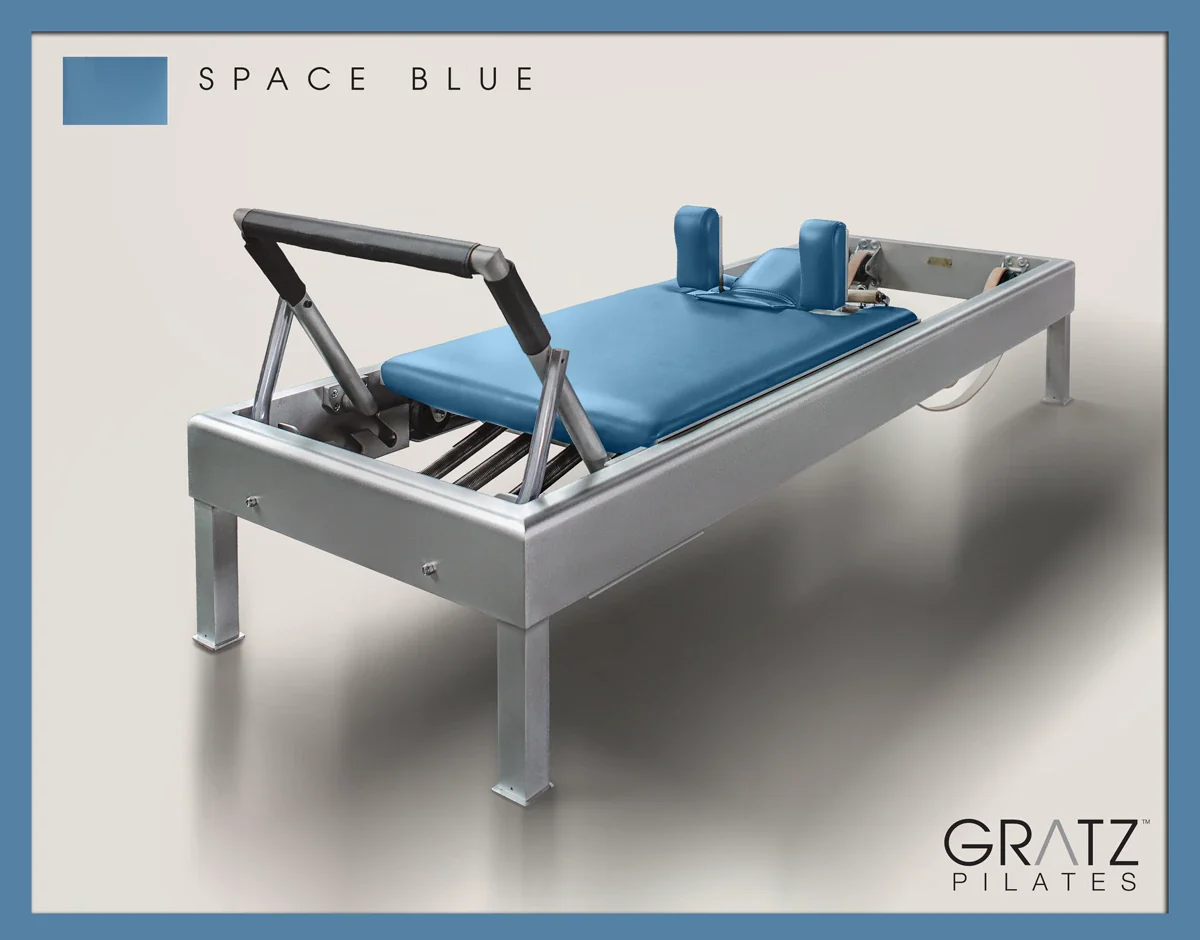

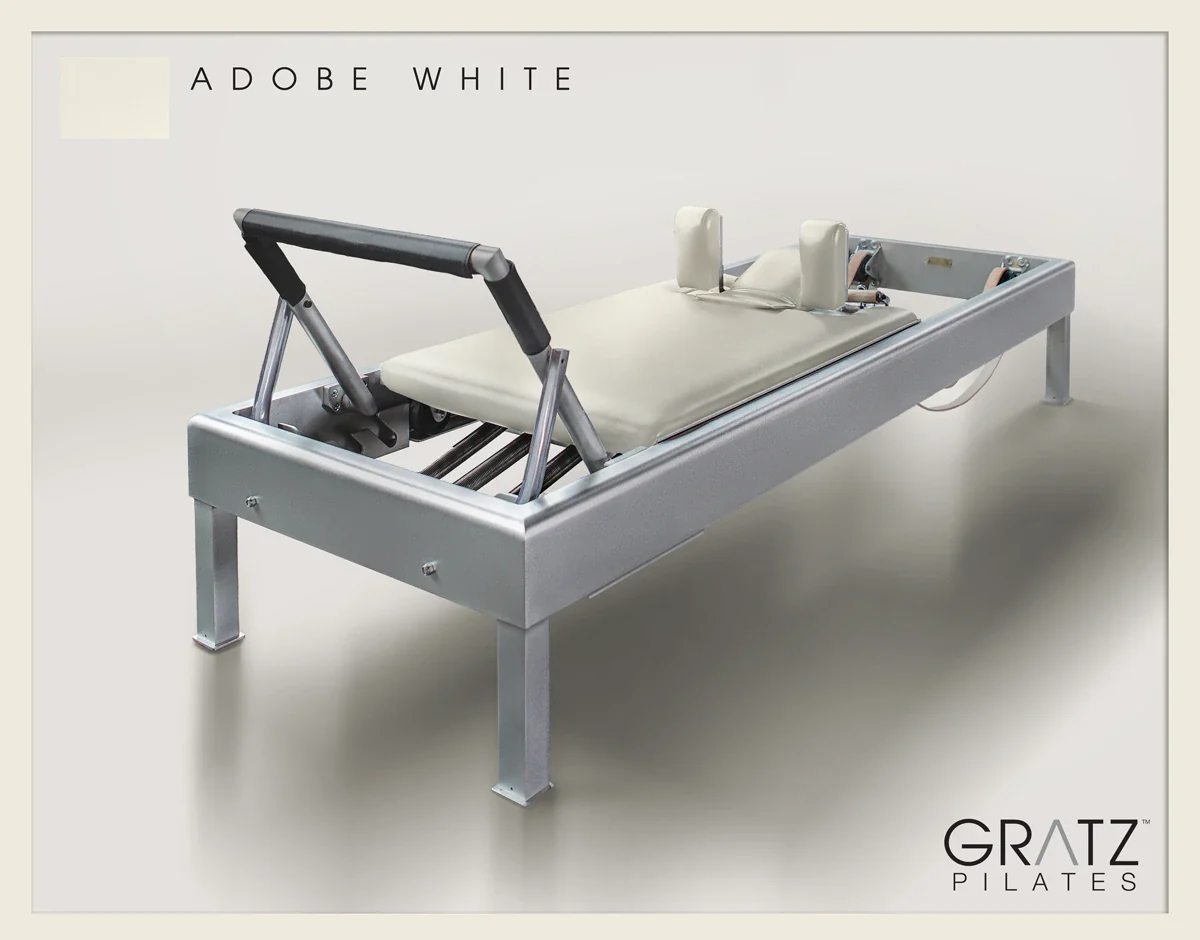

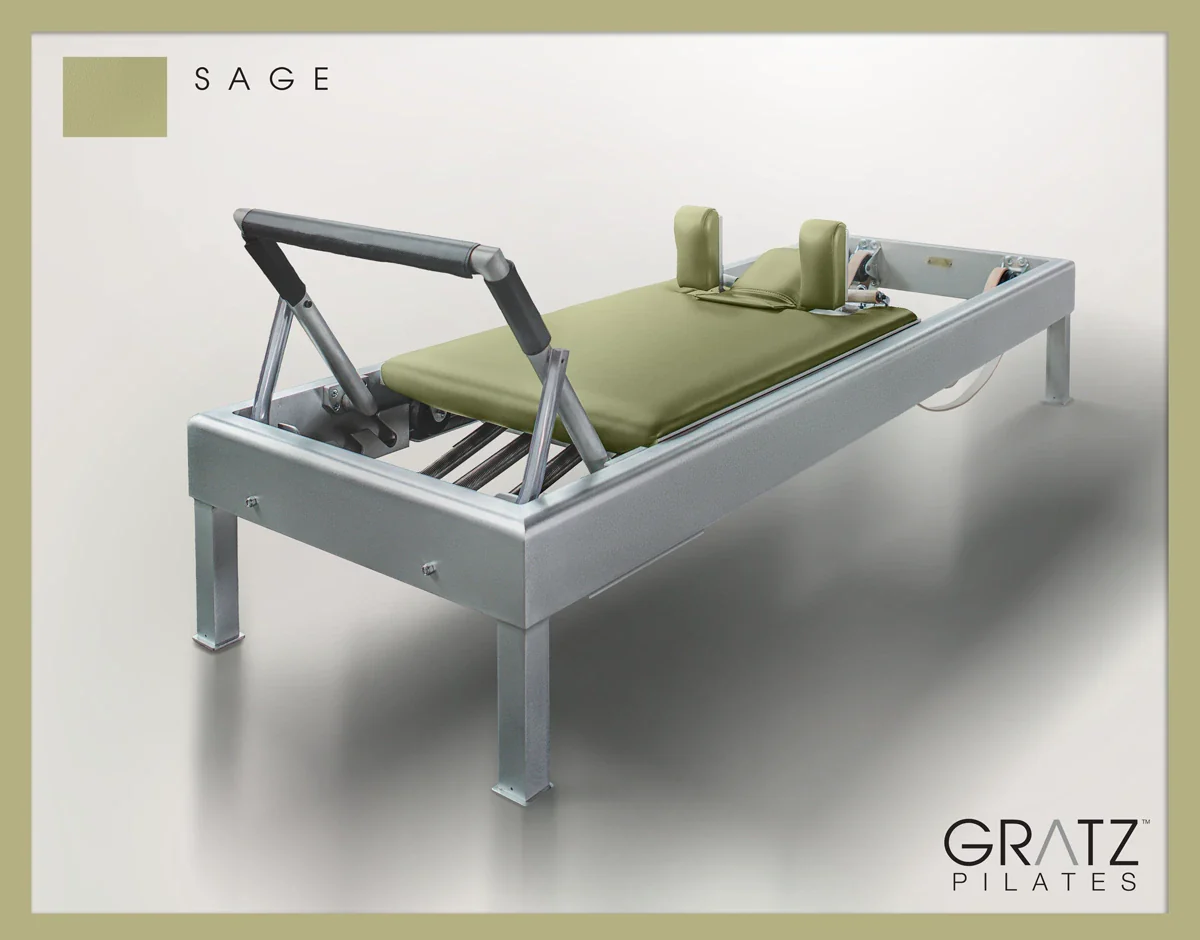

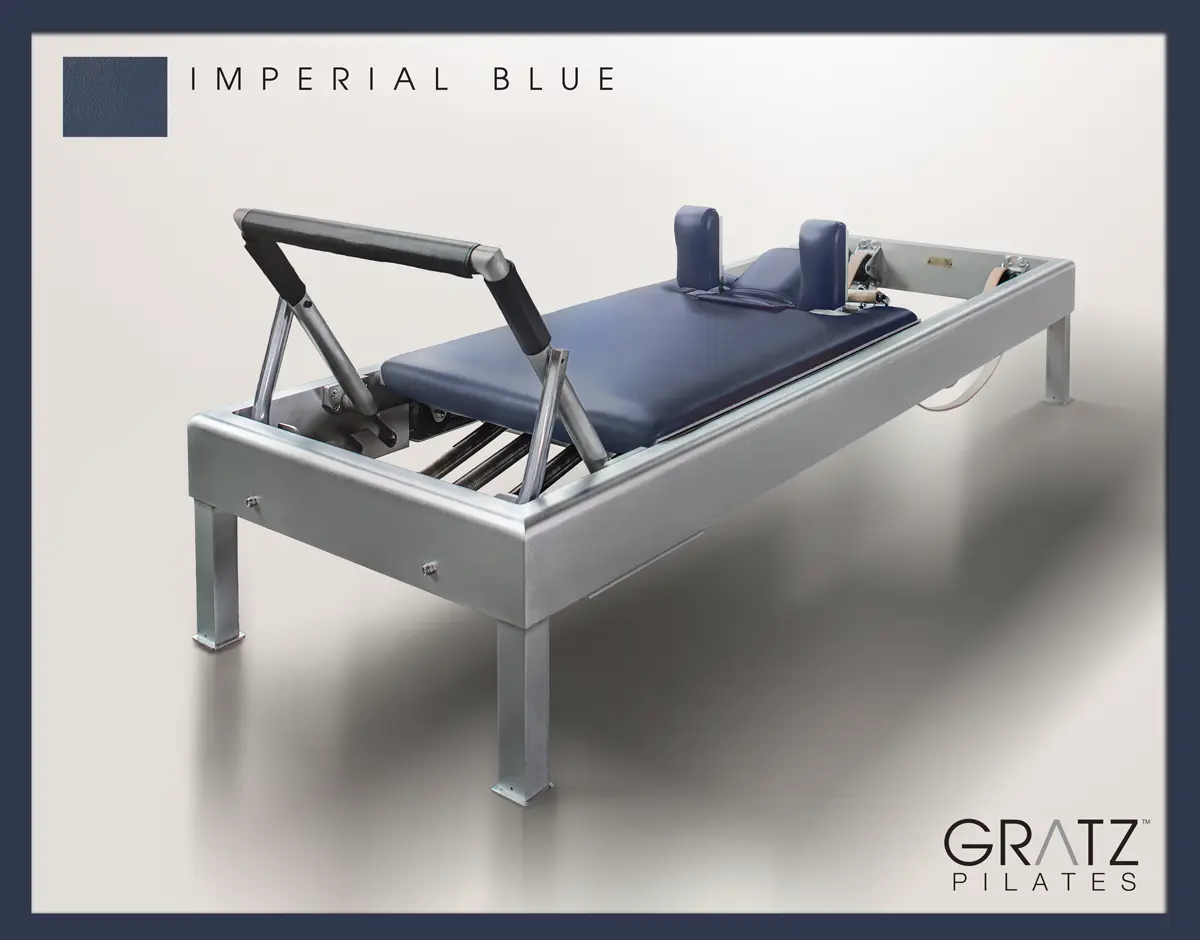

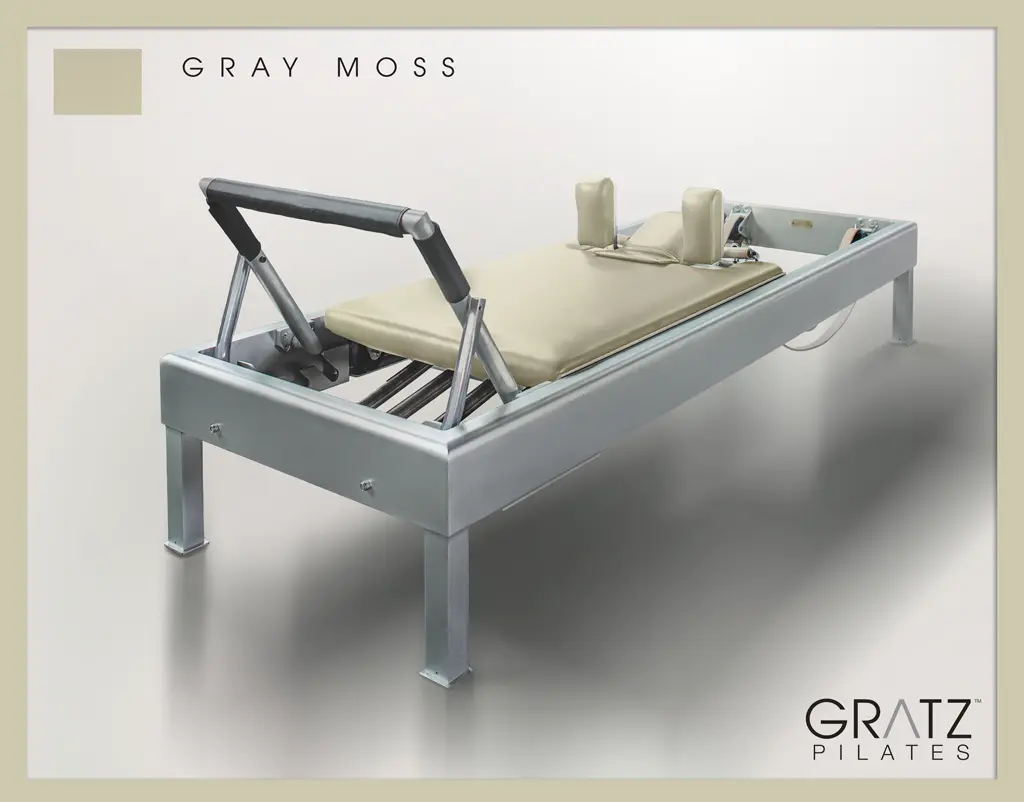

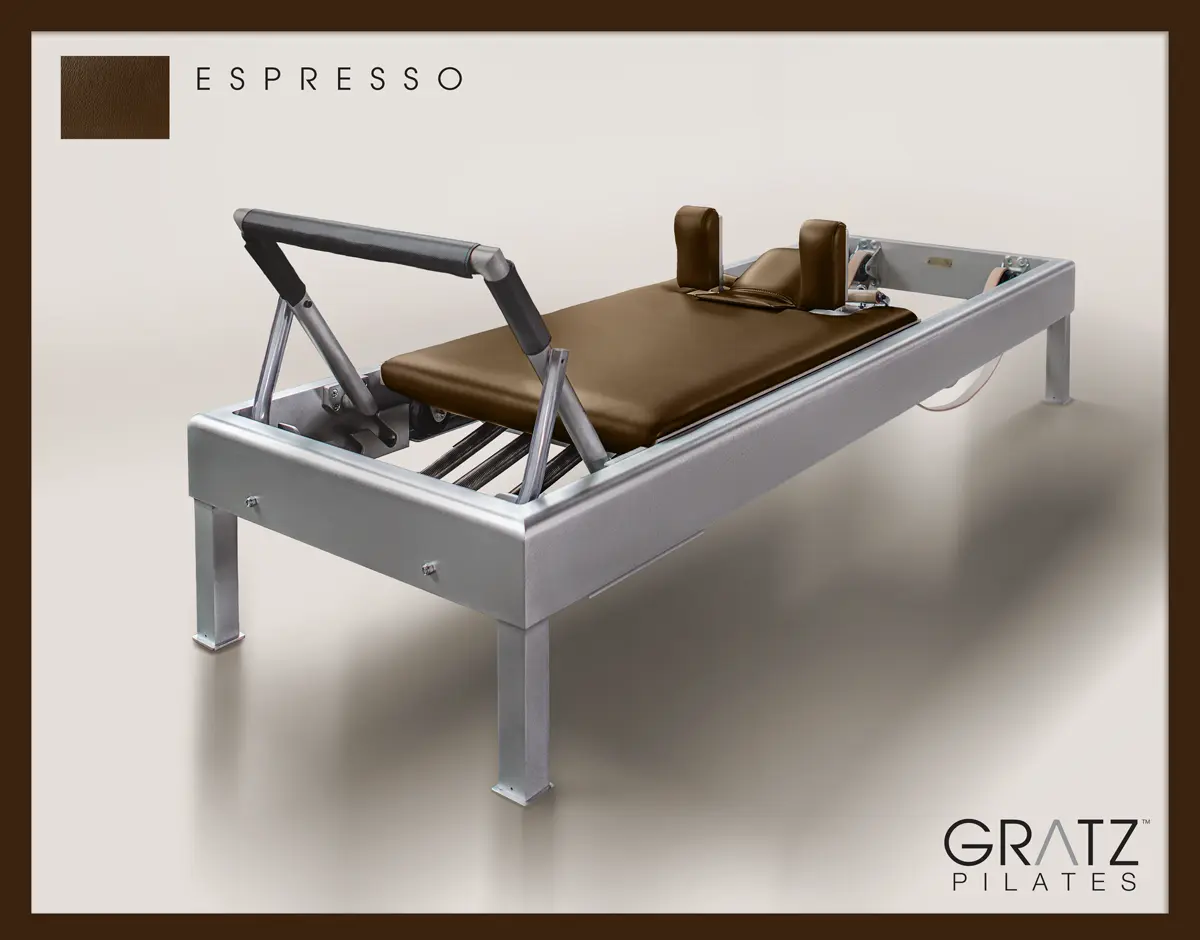

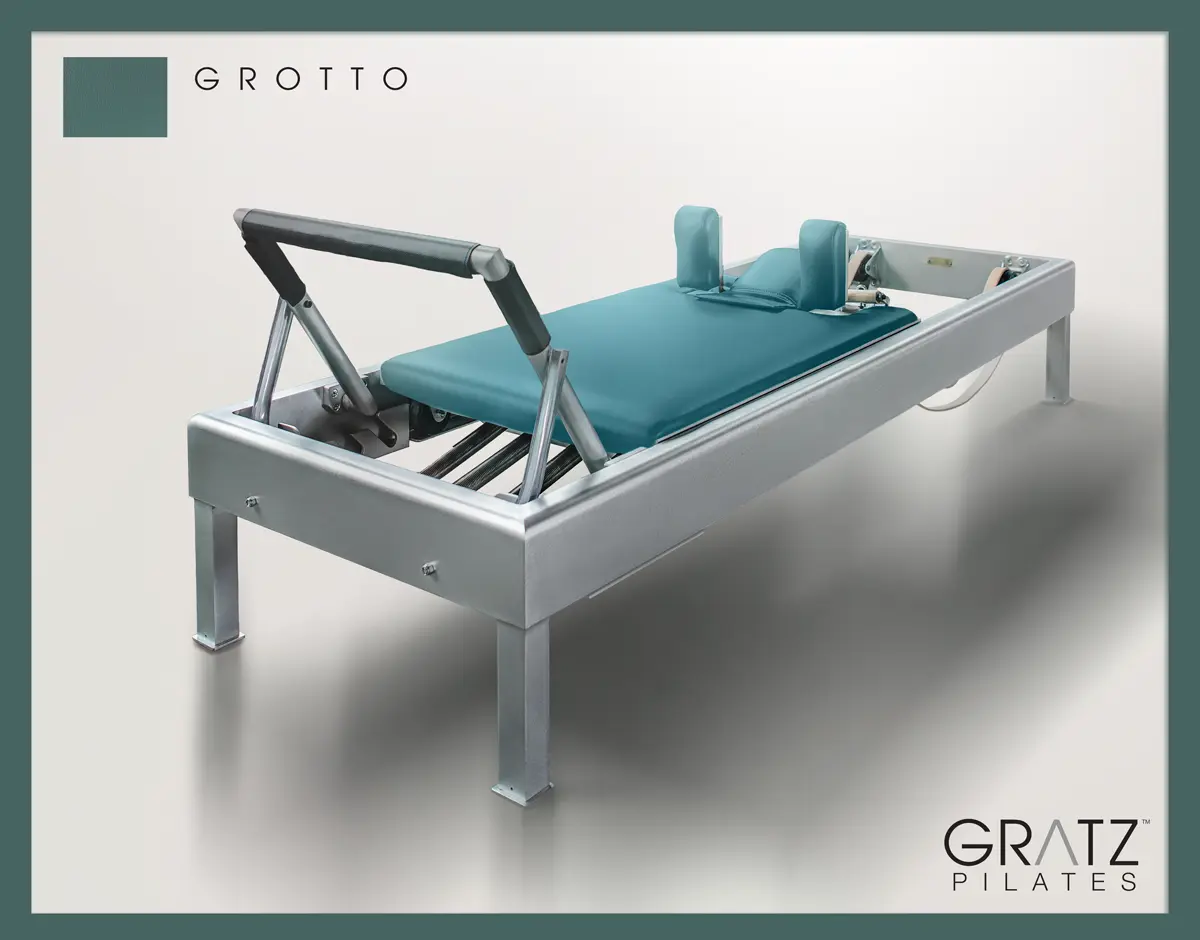

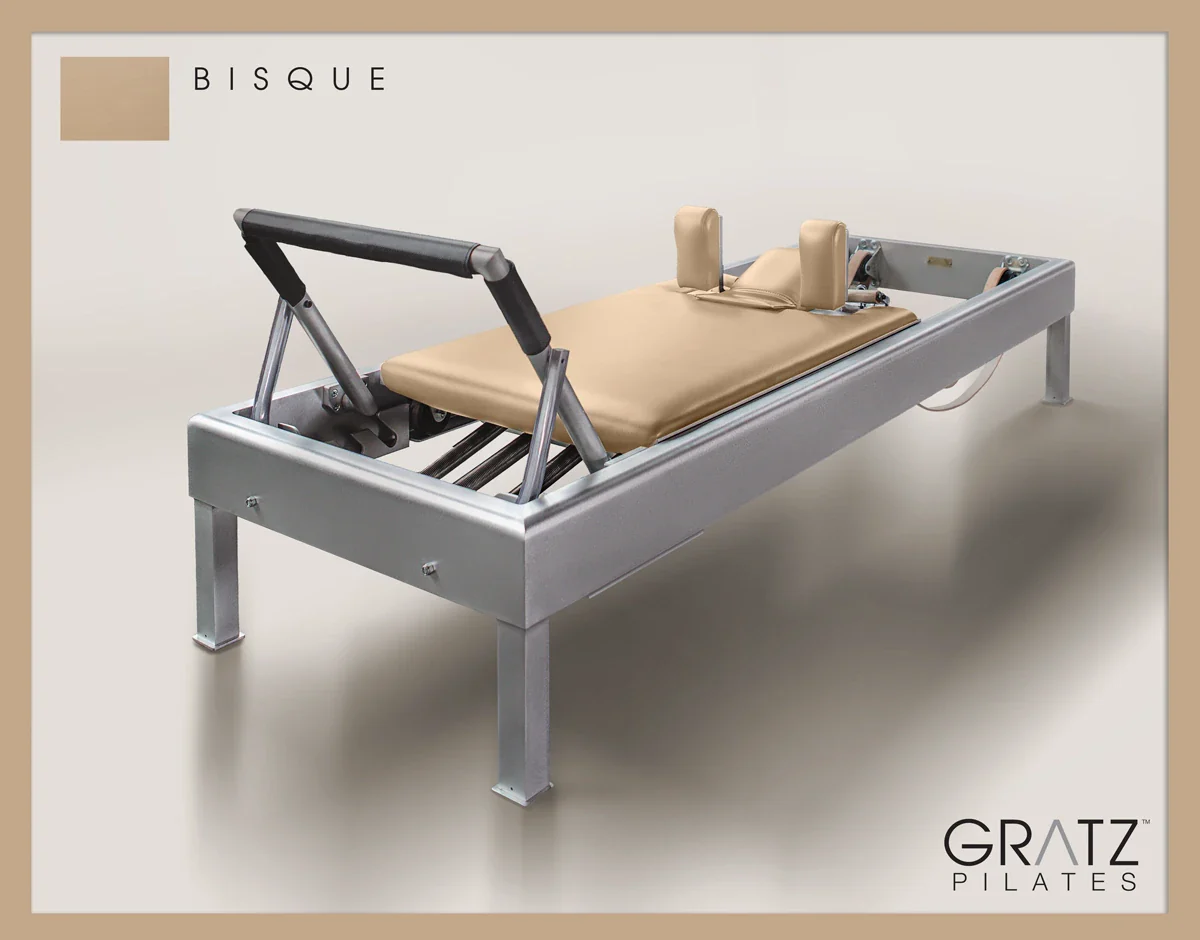

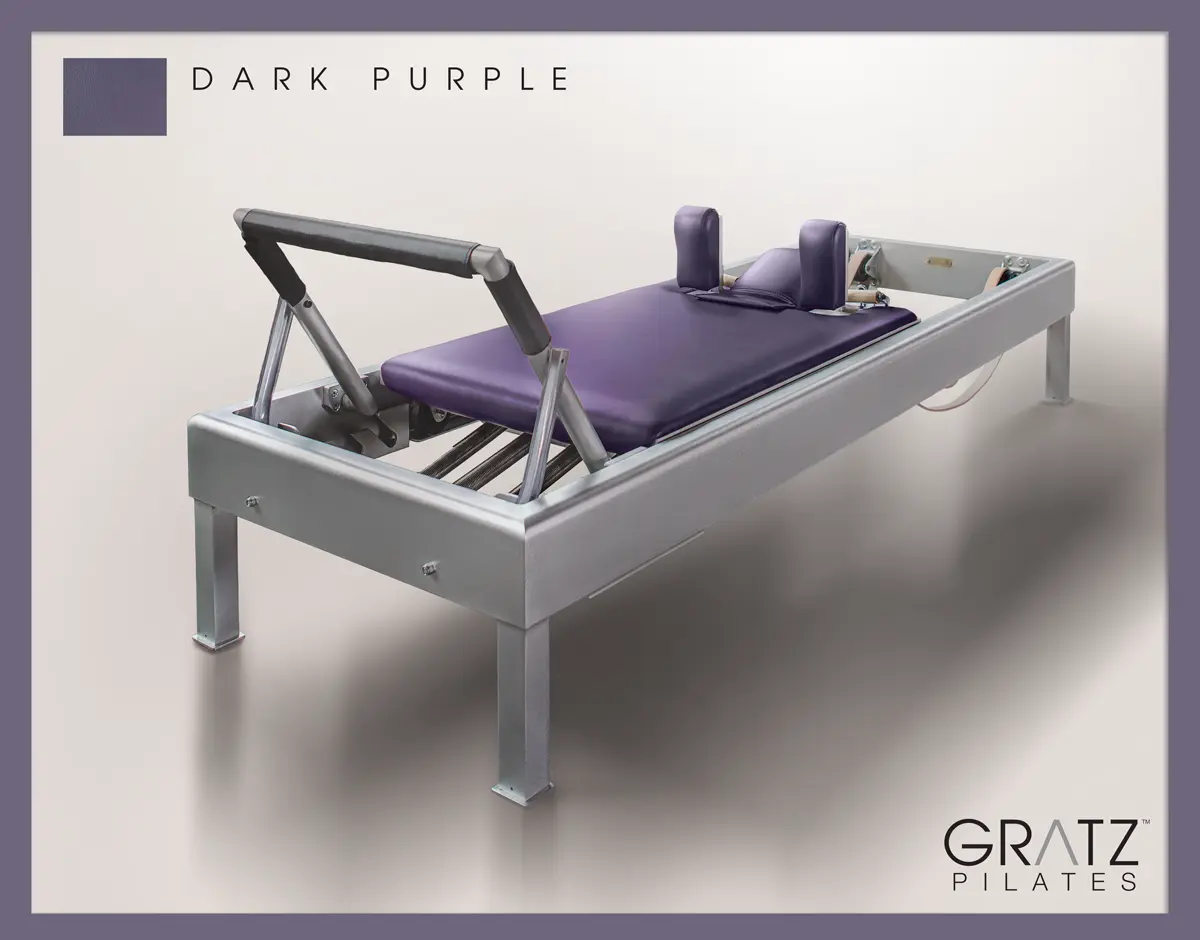

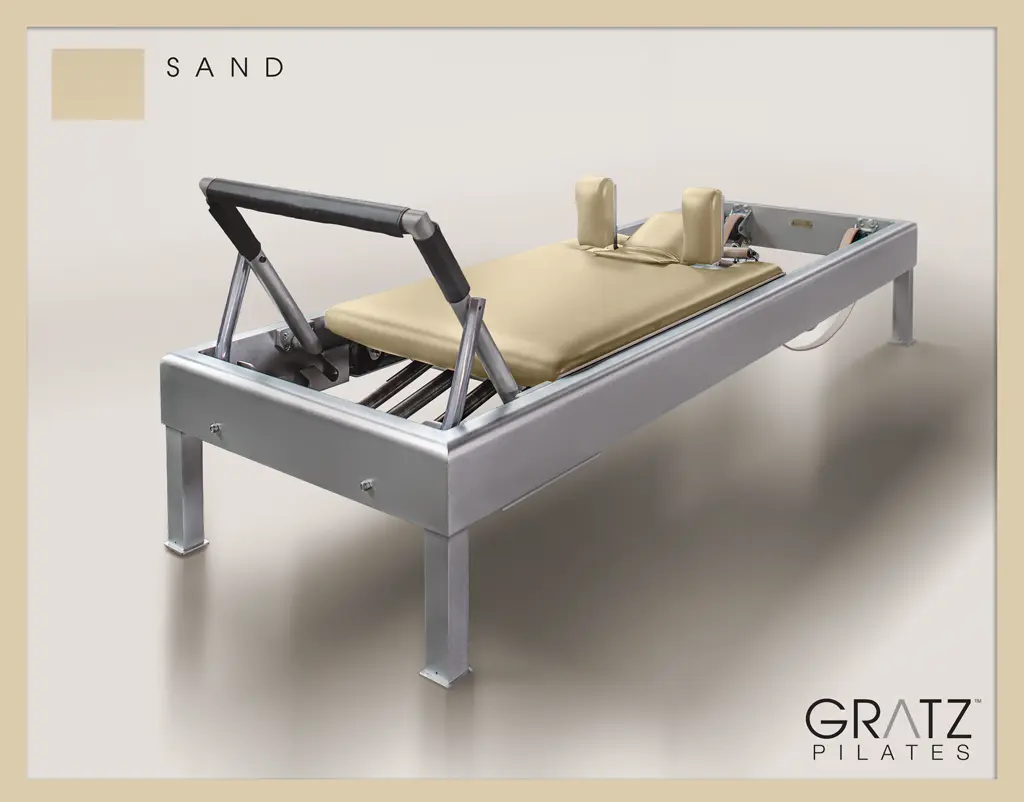

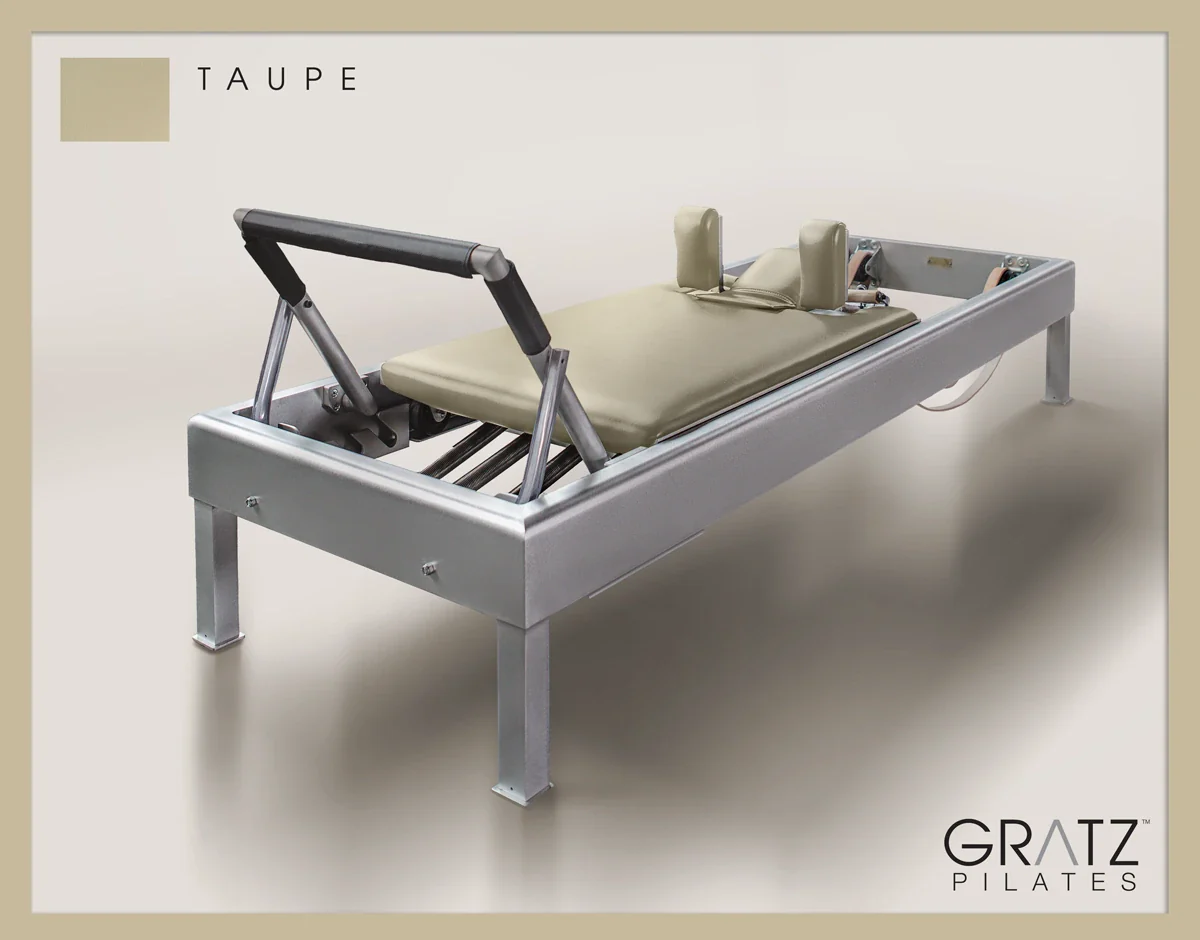

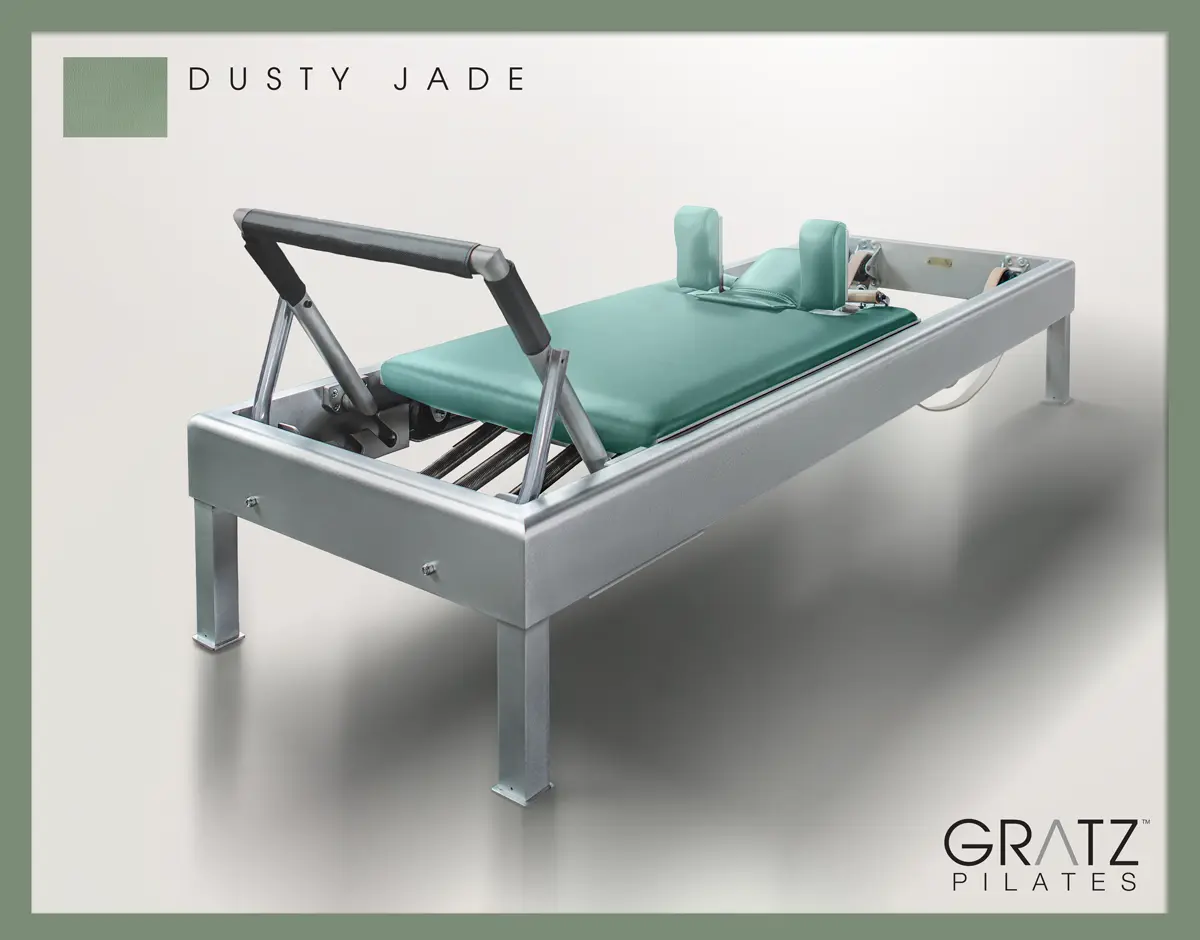

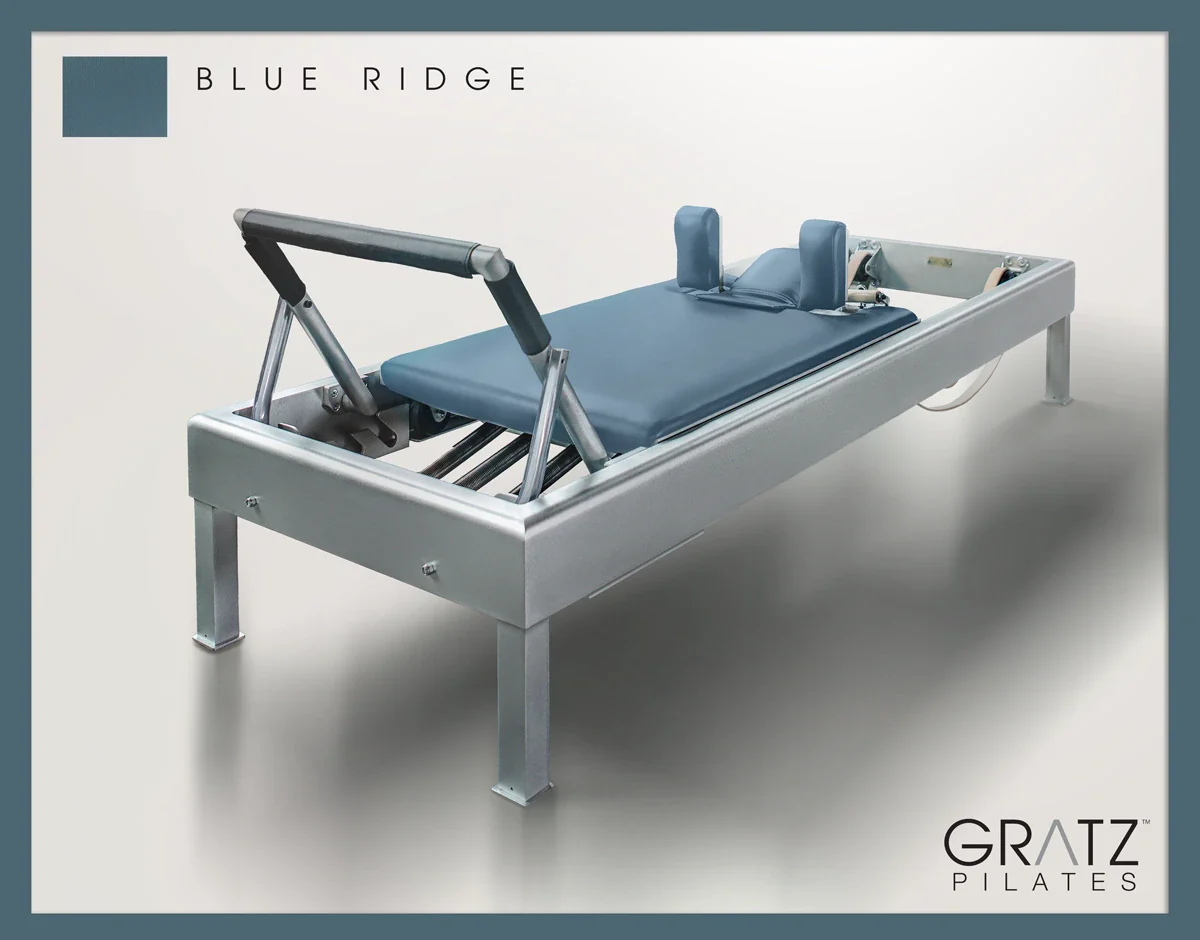

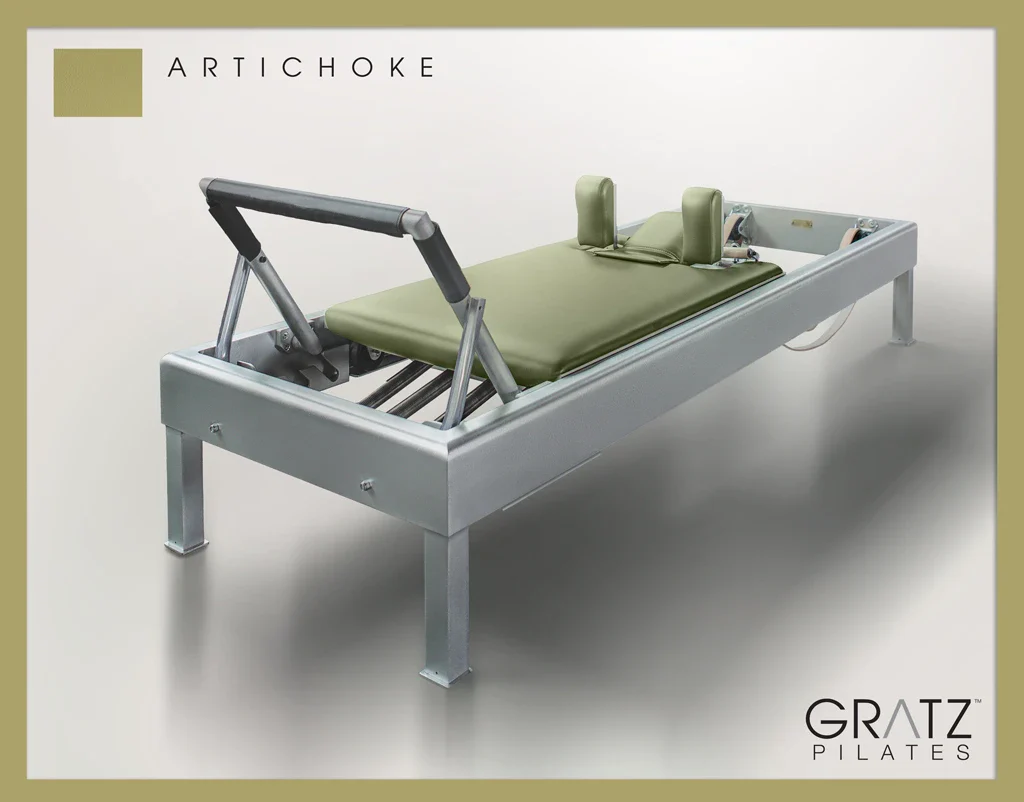

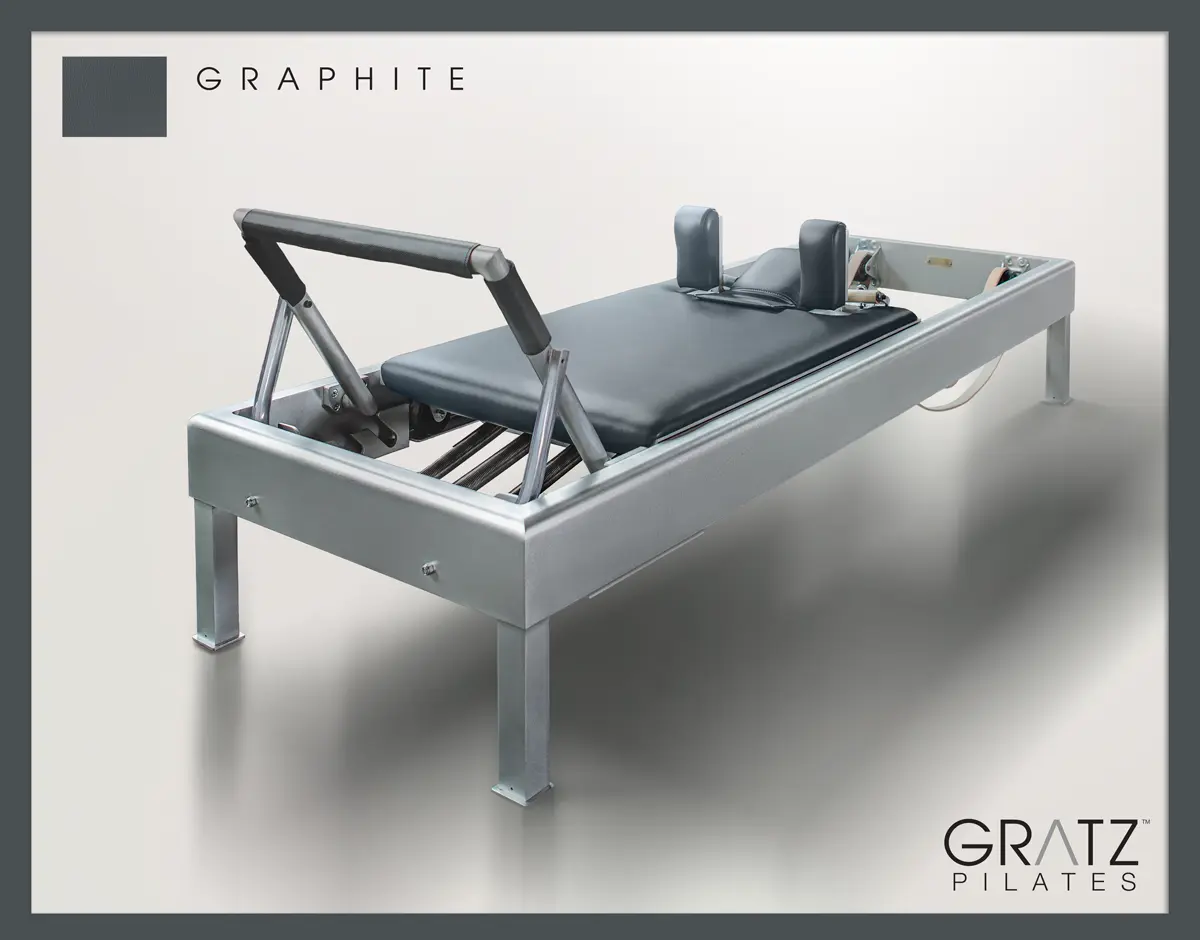

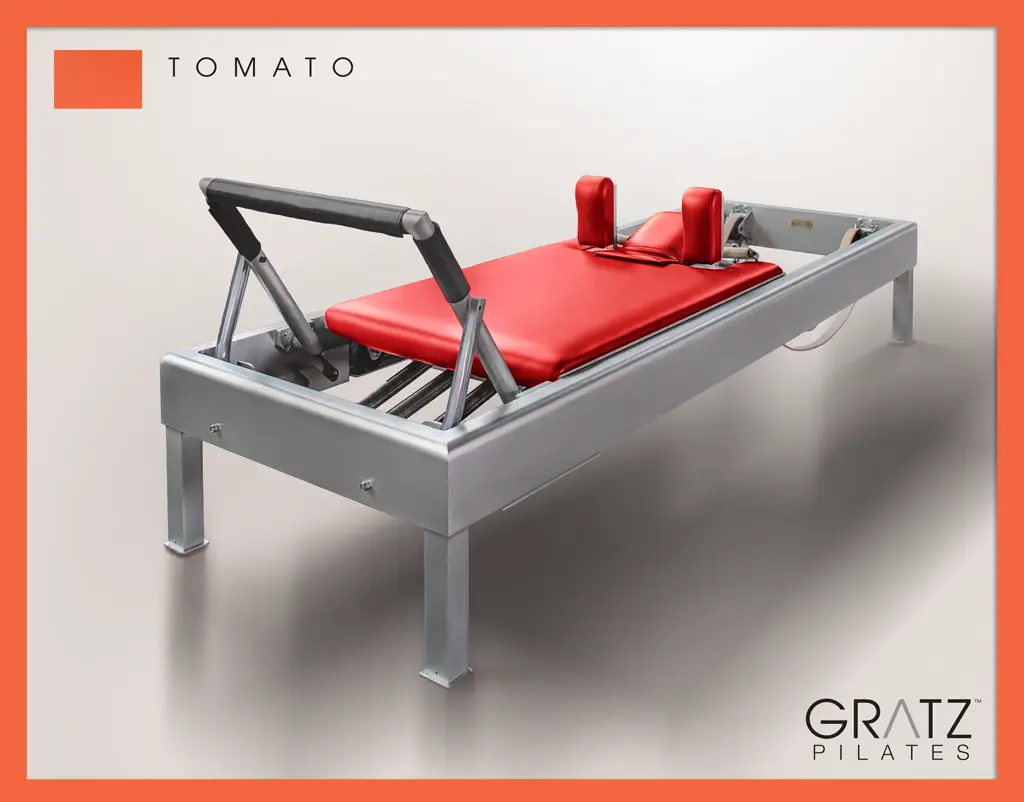

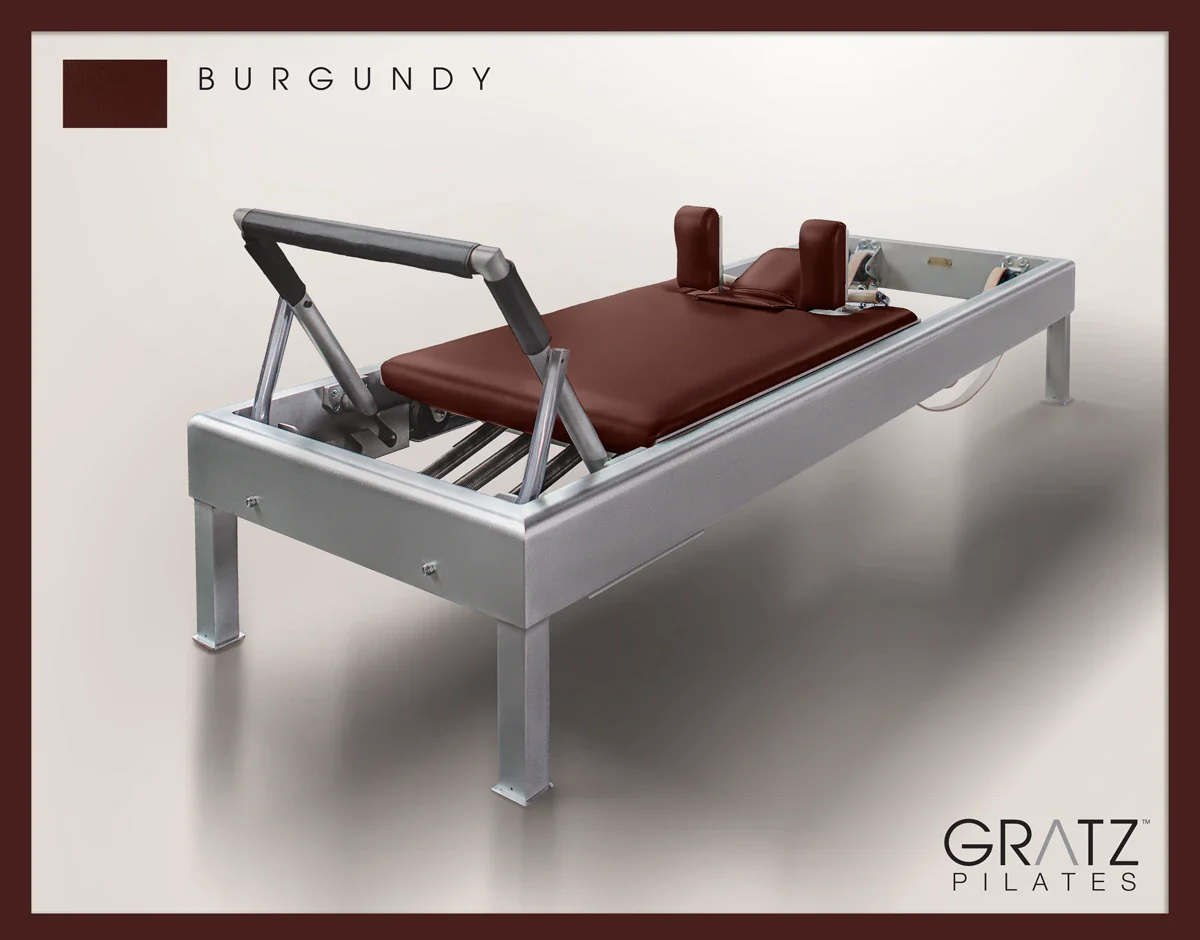

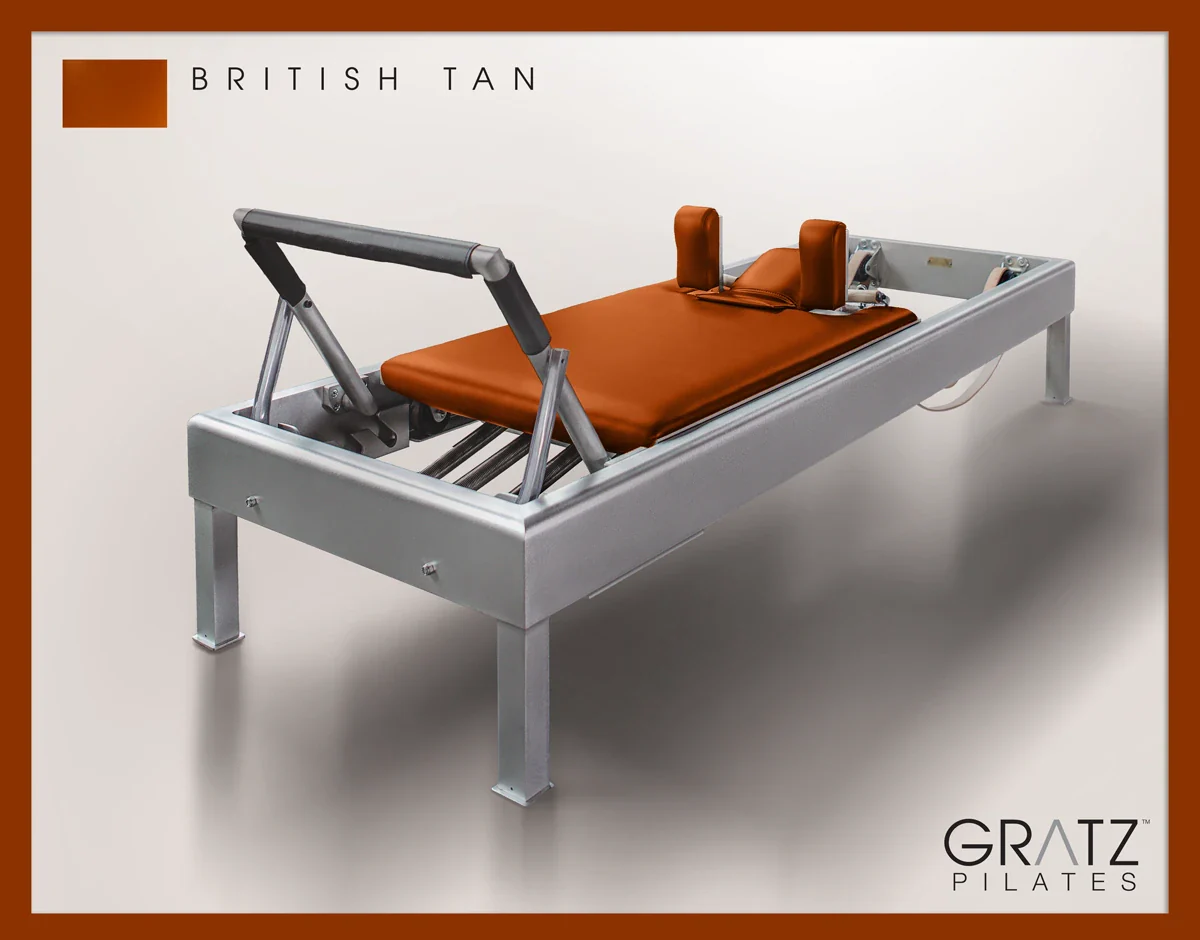

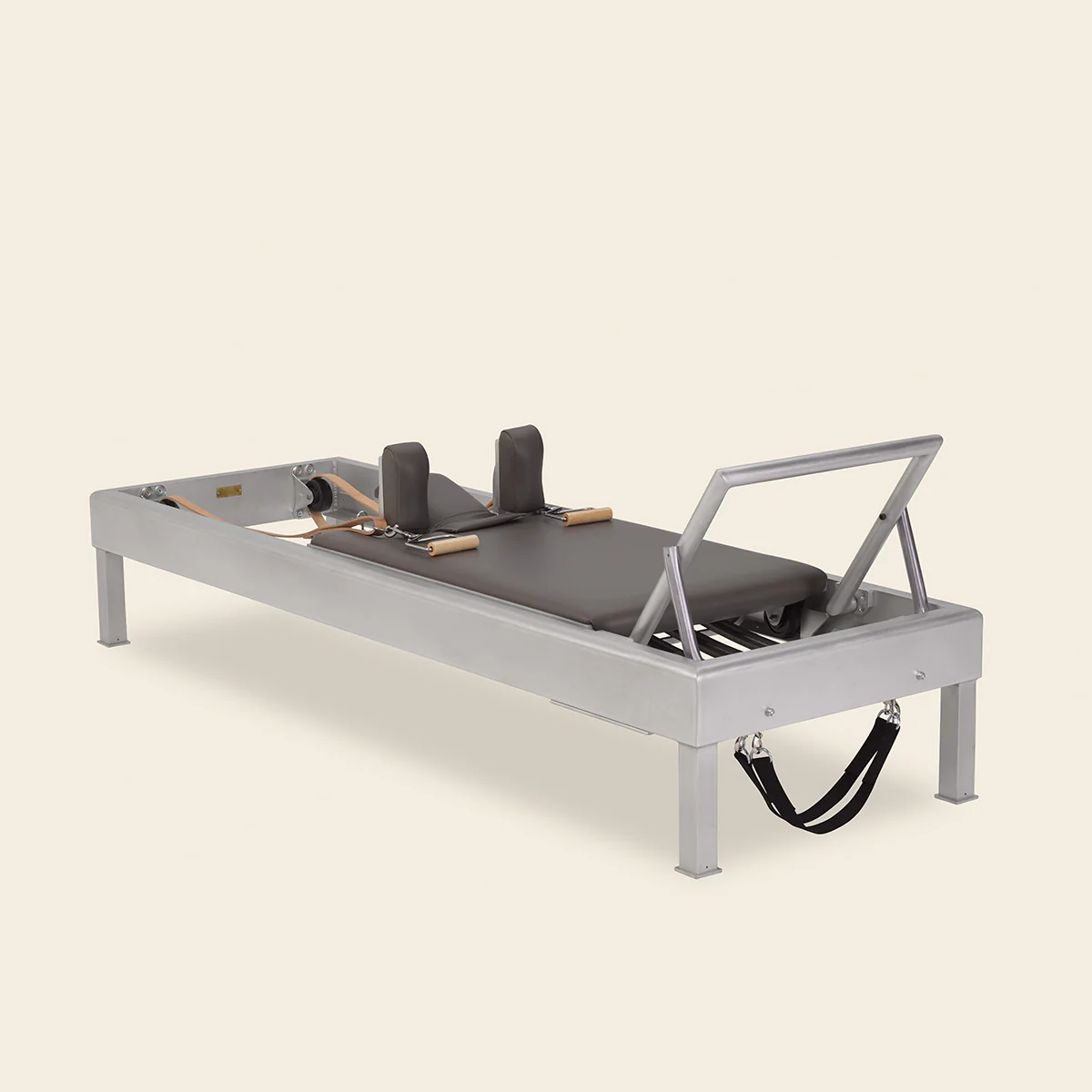

The Archive Reformer is a vintage-inspired edition of the original Gratz Reformer, reintroduced in 2018 to recreate the specifications and feel of early Reformers built from Joseph Pilates’ early designs.

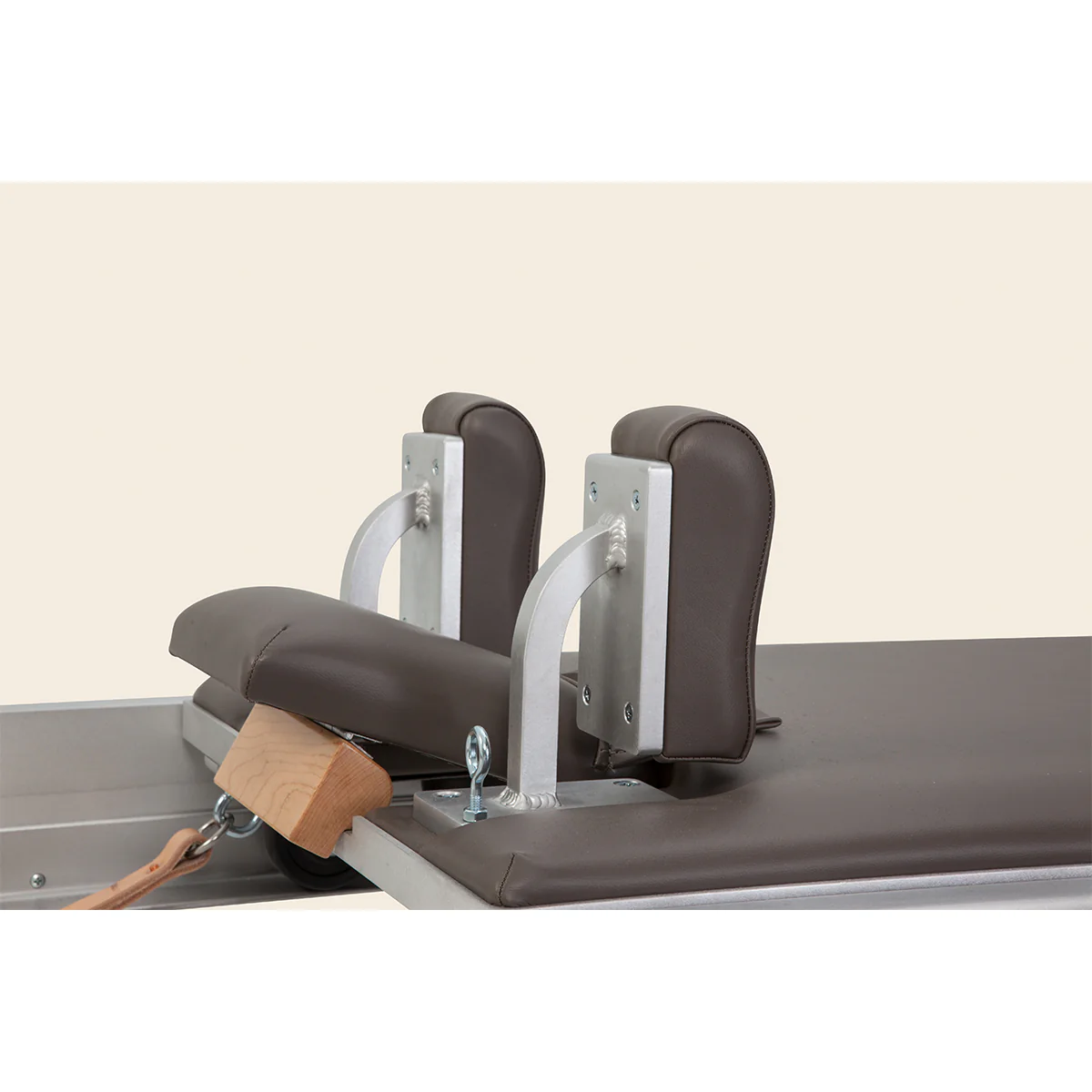

Built with firmer, denser foam on both the carriage bed and shoulder blocks, the Archive Reformer provides a more solid, less cushioned surface. The shorter, more compact shoulder blocks reflect the dimensions of early Gratz Reformers.

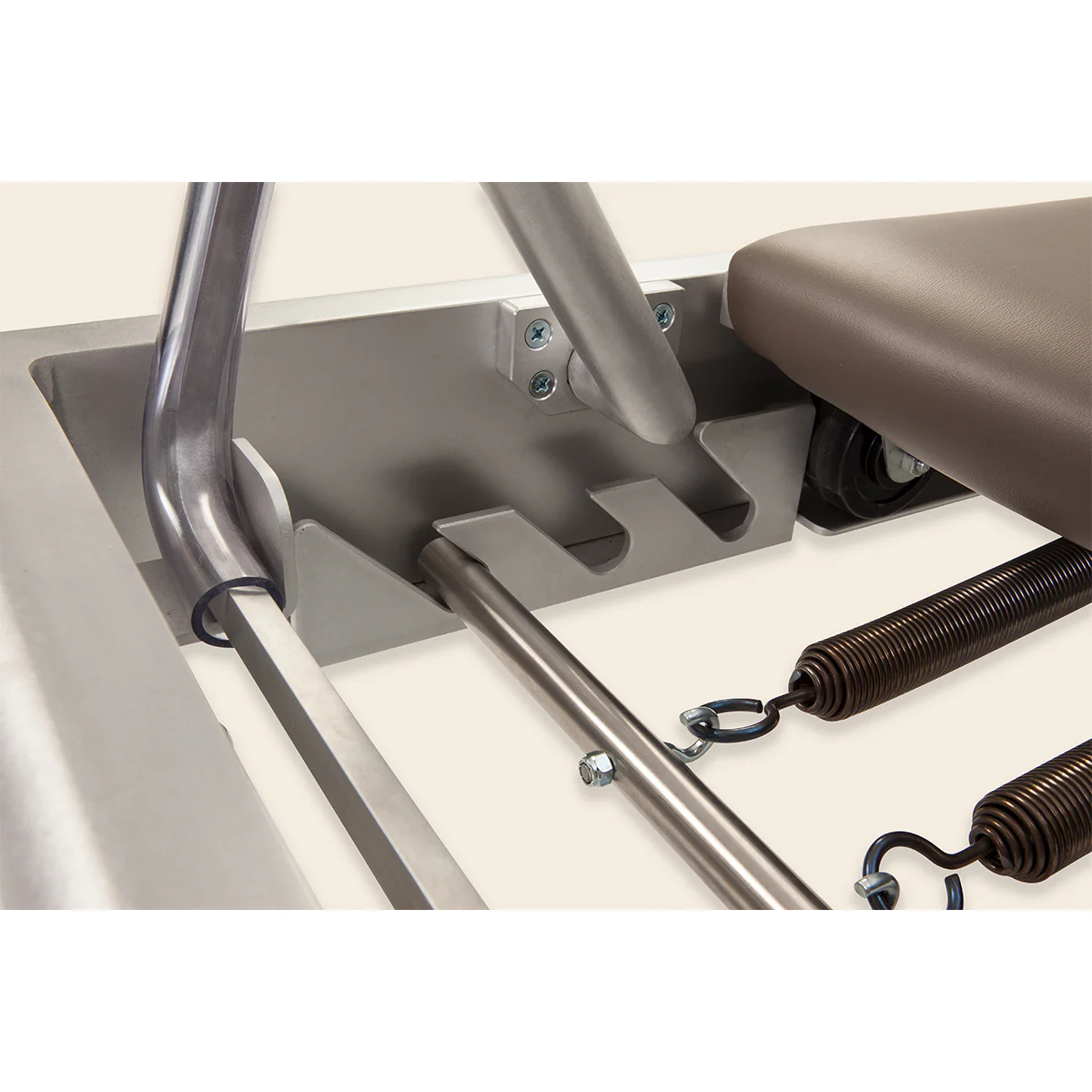

The Gear Slots on the Gear Bar are 1 1/8” deeper than those found on the Universal Reformer, creating a greater spring angle and a subtly different resistance pattern that replicates the dynamic feel of vintage Gratz models. The Foot Bar sits lower compared to the Universal Reformer, further contributing to the distinct setup and feel.

A defining feature of the Archive Reformer is its polished Aluminum Foot Bar paired with an attachable Direct Contact Foot Bar Cover. The unpadded bar delivers a firmer point of contact with minimal cushioning under the feet, allowing for a more immediate and connected response from the apparatus.

 READ MORE

*30 day price change notice for Archive Reformers. New price is $4,995 effective 5/14/2026 for 80". Learn more.*

• Archive Reformer Description

• Demo: How to Use the Archive Reformer

• Product Size & Box Dimensions

•

  While a skilled practitioner can work on any Pilates Reformer length, it’s helpful to choose a size that supports the widest range of clients, especially when working with different body types, heights, and experience levels.

  You can always fine-tune workouts by using the tools you already have such as adjusting gears or utilizing the Spacer or TV Box for shorter clients.

  For a diverse client base (skill level and height), Gratz provides these general guidelines:

  • 80": Individuals under 5'8", longer Reformers can be too long for these individuals.
  • 86": Individuals 5'8" and 6'2". This is the most popular choice for studios with a wide range of client heights and skill levels.
  • 89": Individuals over 6'2".

  These aren’t strict rules, just helpful guidelines to support comfort and alignment. If you have questions about selecting the right size for your studio or clients, we’re always here to help.

•

  Video provided by Pilatesology.com.
  Pilatesology allows you to take Pilates mat and apparatus classes in the comfort of your own home or wherever life takes you. New classes are added every week featuring world-renowned, classical Pilates teachers.
•


  Pilates Reformer in Aluminum Size and Weight Specifications

  Dimensions	Imperial	Metric
  Length	80 in 86 in  89 in	203 cm 218 cm 226 cm
  Width	26 in	66 cm
  Height	13.75 in	35 cm
  Weight	120 lbs 129 lbs 137 lbs	54.4 kg 58.5 kg 62.1 kg





  Pilates Reformer in Aluminum Box Dimensions

  Dimensions	Imperial	Metric
  Length	92 in	234 cm
  Width	30 in	76 cm
  Height	17 in	43.2 cm

Pilates Archive Reformer Includes:

• Reformer Leather Straps

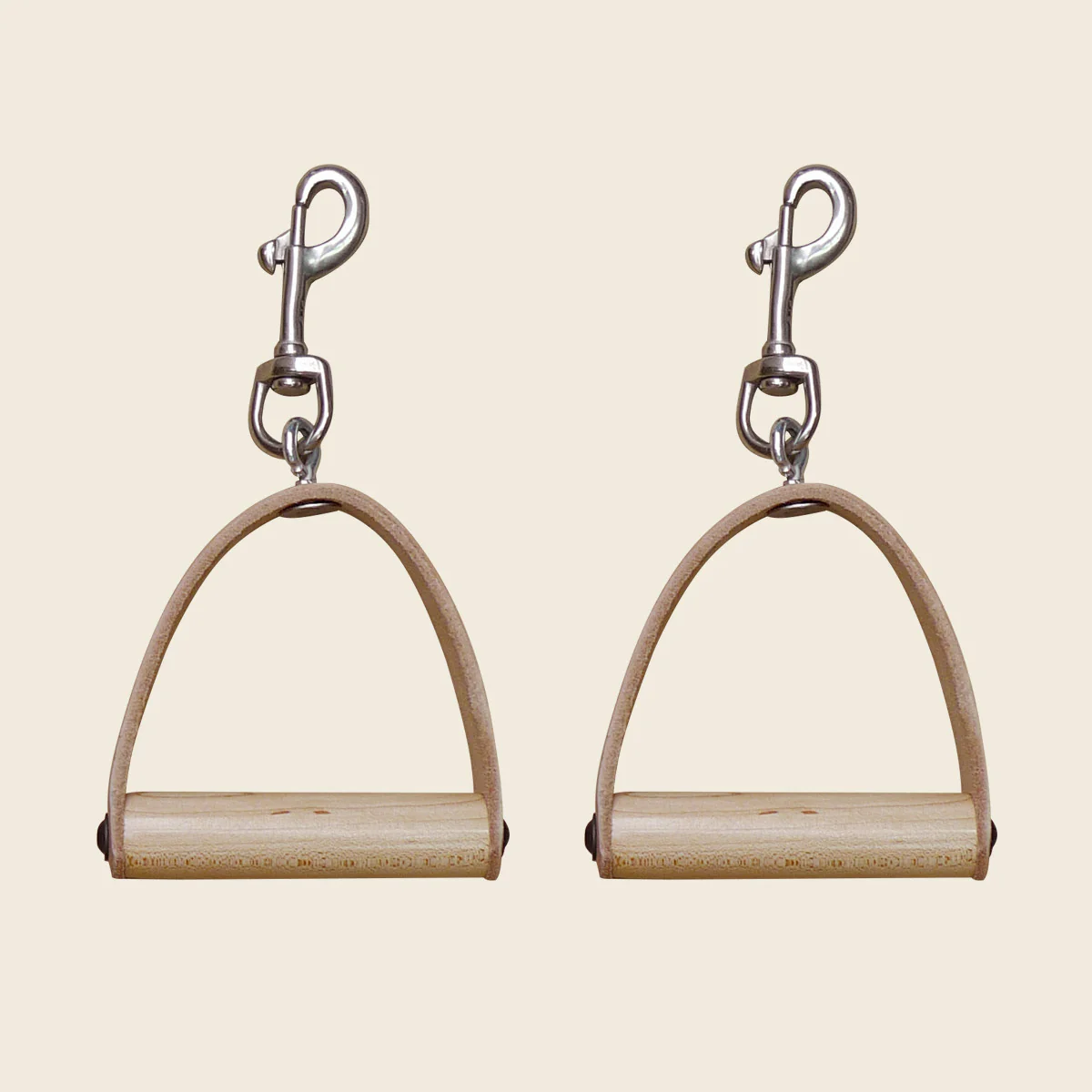

• Leather & Wood Handles (pair)

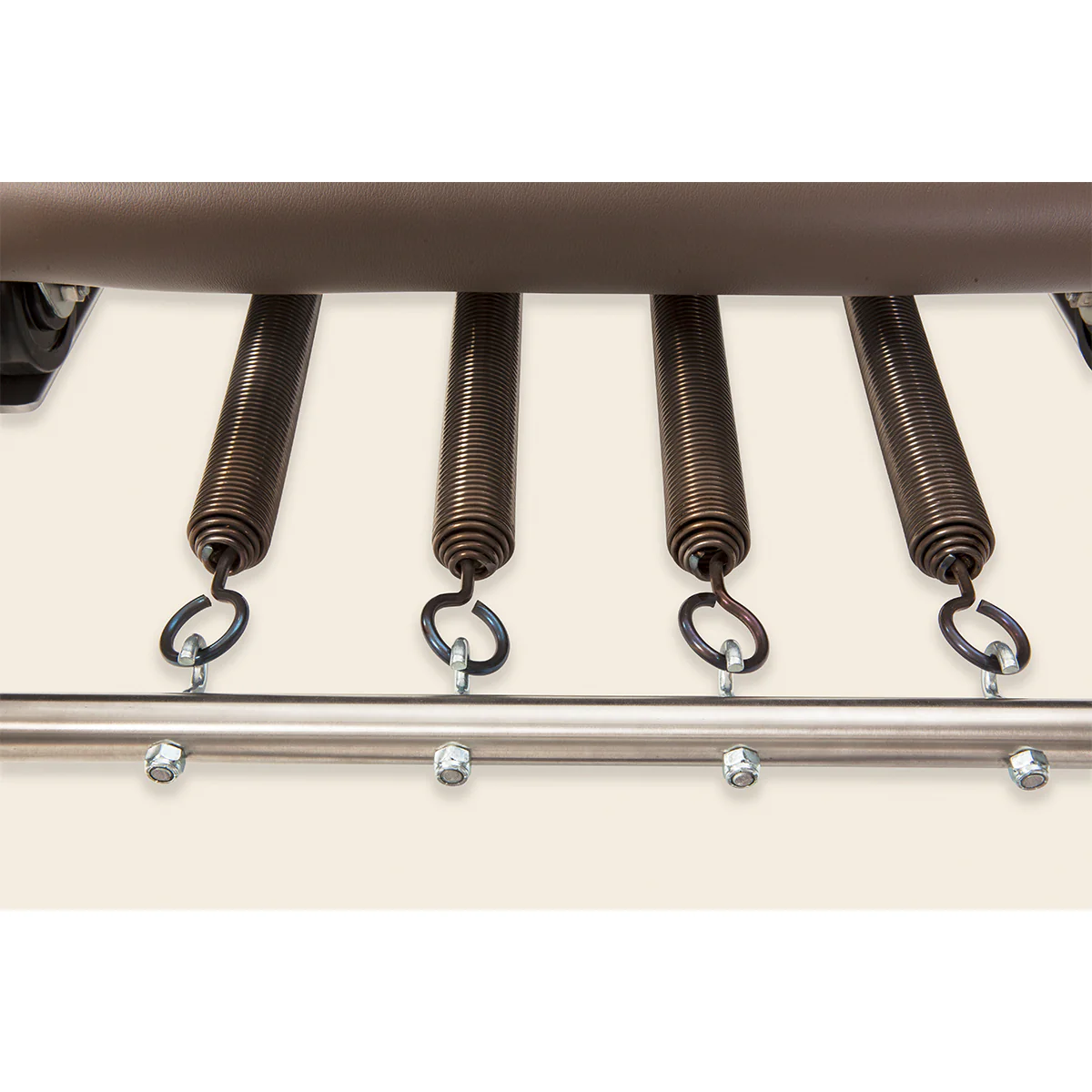

• Vintage Long Neck Springs or Standard Reformer Springs
• Reformer Box
• Polished Aluminum Foot Bar with attachable Direct Contact Foot Bar Cover
• Pair of 20" Foot Straps
• 27" Extension Black Canvas Straps
• Standard Weighted Pole - 1lb

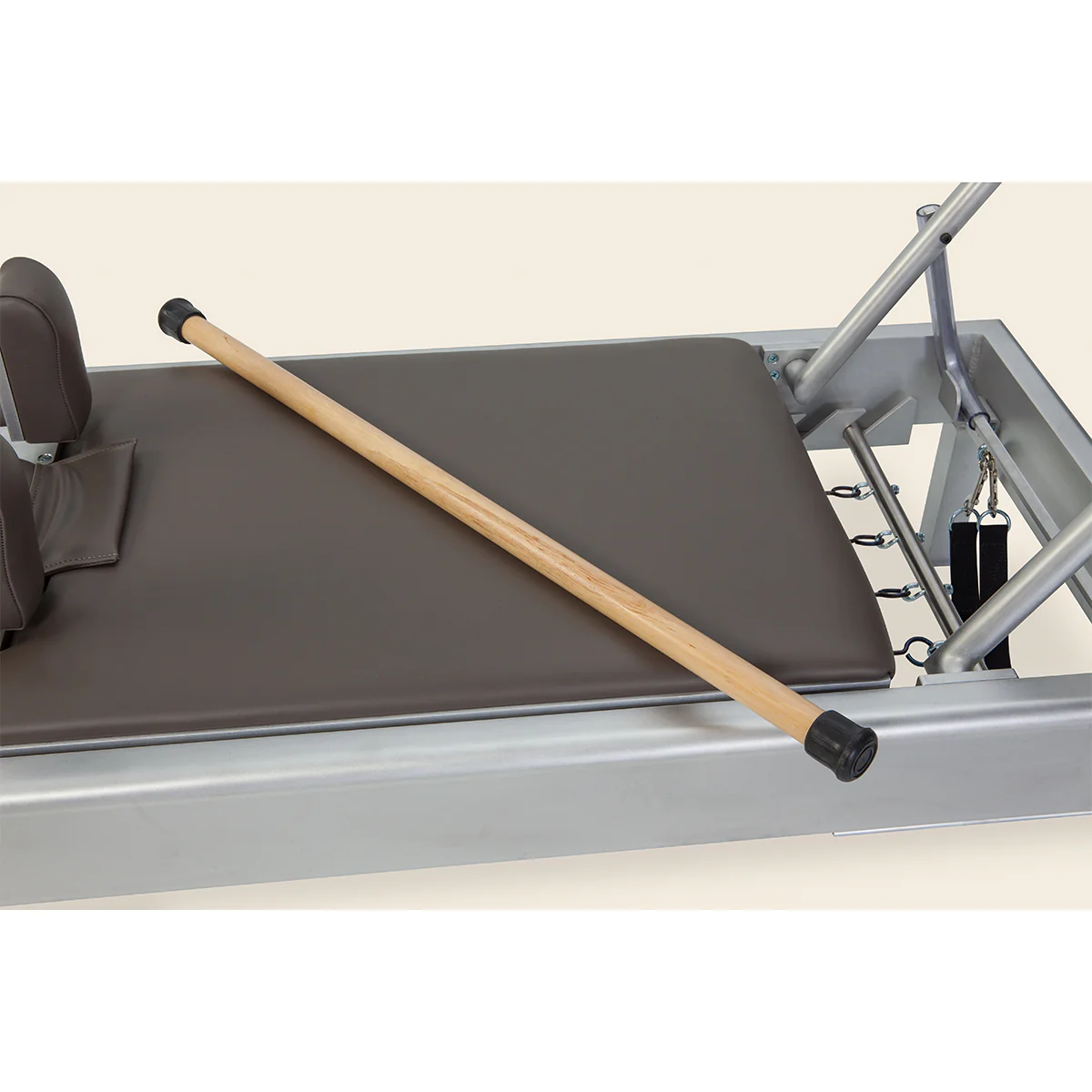

• 36" Wood Pole - 1lb

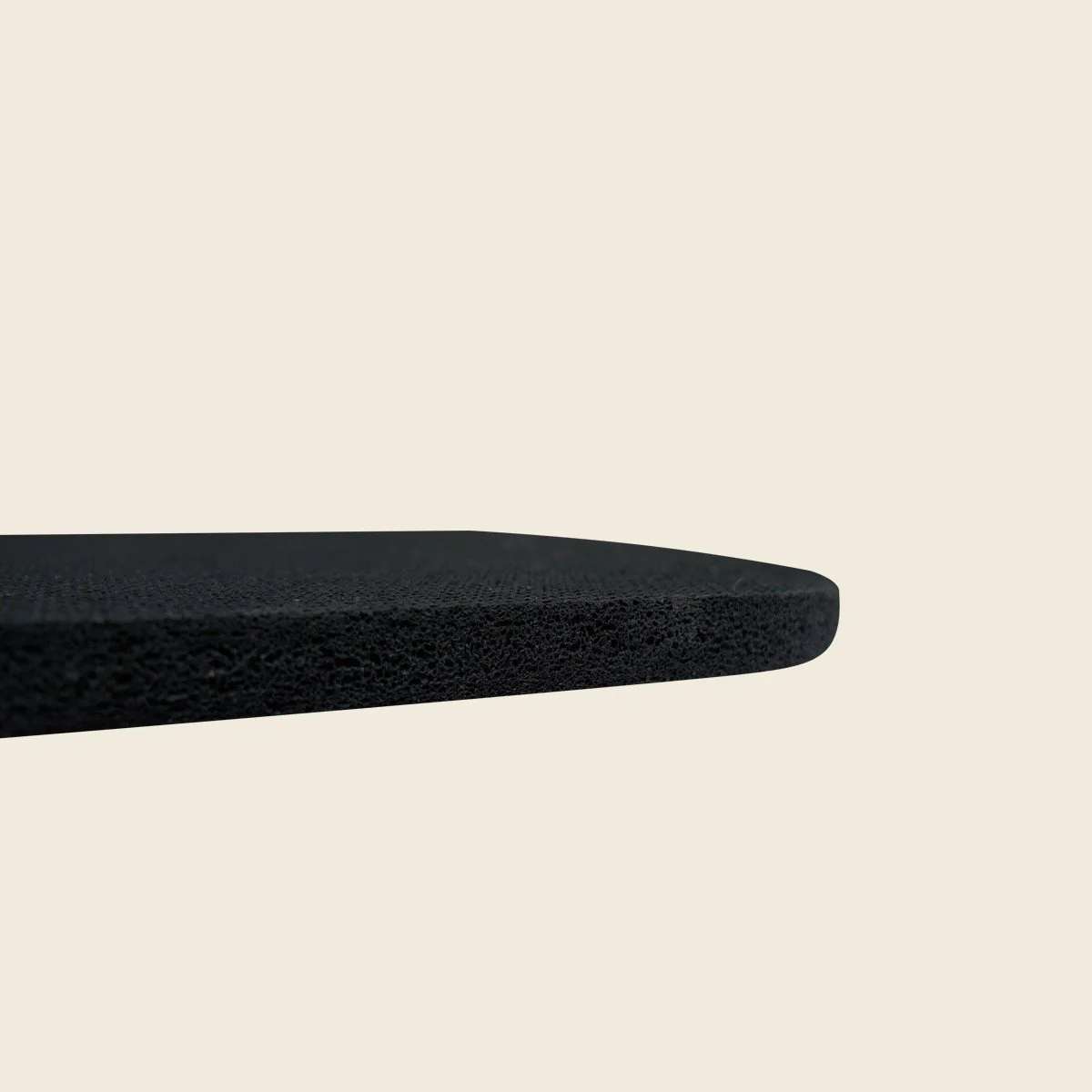

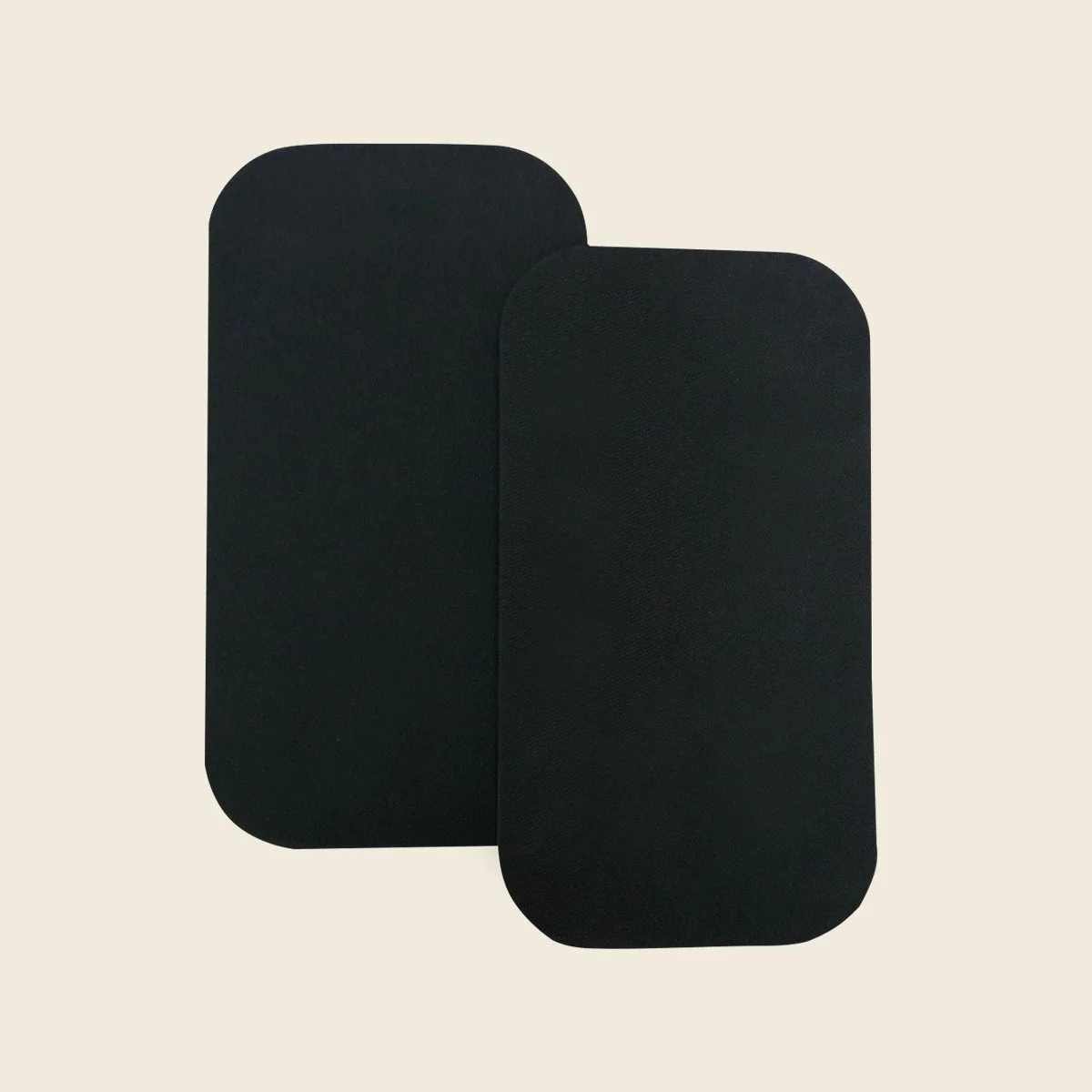

• Thick Rubber Pads
• Sandwich Gear Stopper


Lead Time

All orders are custom made. Estimated lead time for this product is under 3 months.
